National standard configuration straightening machine Special for reinforcing bars construction wire rods
Standard components include: 12 adjustable straightening wheels and pressing wheels for dual support It is suitable for scenarios in steel reinforcement processing plants and on-site wire rod processing sites The heavy-duty frame is made of international plates and is reinforced with a unique appearance patent The straightening frame is easy to adjust and does not require complex operations It is equipped with an 8-meter material rack which saves manpower and reduces processes It supports variable frequency speed control for precise speed regulation The shortest cutting length can be 5 centimeters It efficiently handles various types of steel bars and wire rods for straightening and cutting It meets the needs of on-site construction sites and batch processing in steel reinforcement processing plants
- Overview
- Applicable Ambient
- Selling Point Of A Product
- Product Parameter
- Product Details

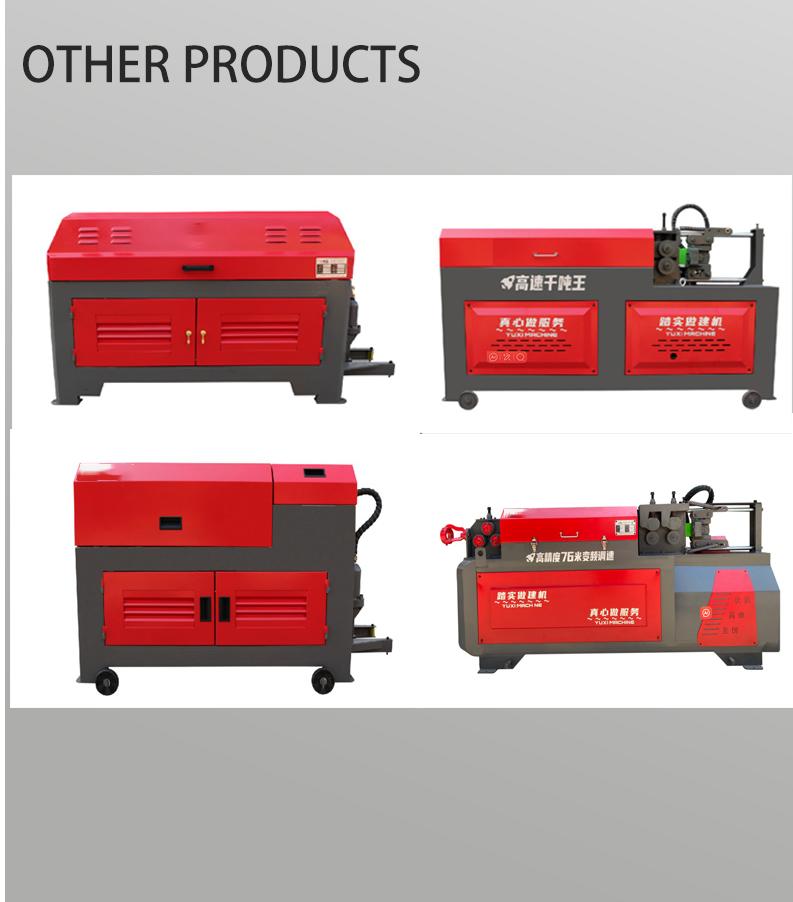

- Recommended Products
National standard configuration straightening machine Special for reinforcing bars construction wire rods

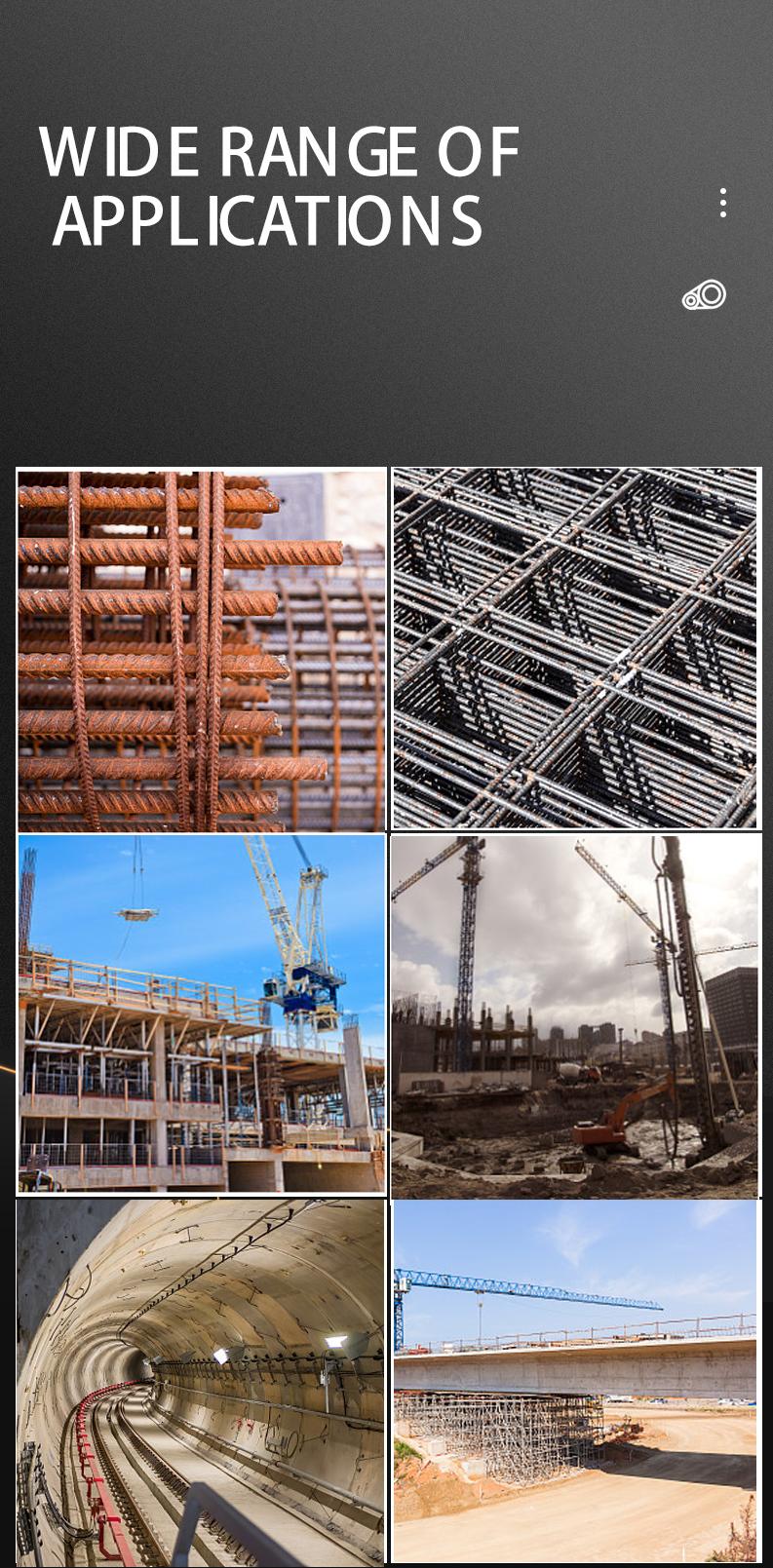

Applicable Ambient
Suitable for steel bar processing plants and on - site wire rod processing.
Selling Point Of A Product
Bar Straightener
GJ0005:Equipped with an 8-meter material rack, with variable frequency speed control, it can cut the shortest pieces to 5 centimeters (for short materials)
GJ0006:Equipped with an 8-meter material rack, with variable frequency speed control, it can cut the shortest pieces to 5 centimeters (for short materials)
GJ0007:Equipped with an 8-meter material rack, with variable frequency speed control, it can cut the shortest pieces to 5 centimeters (for short materials)

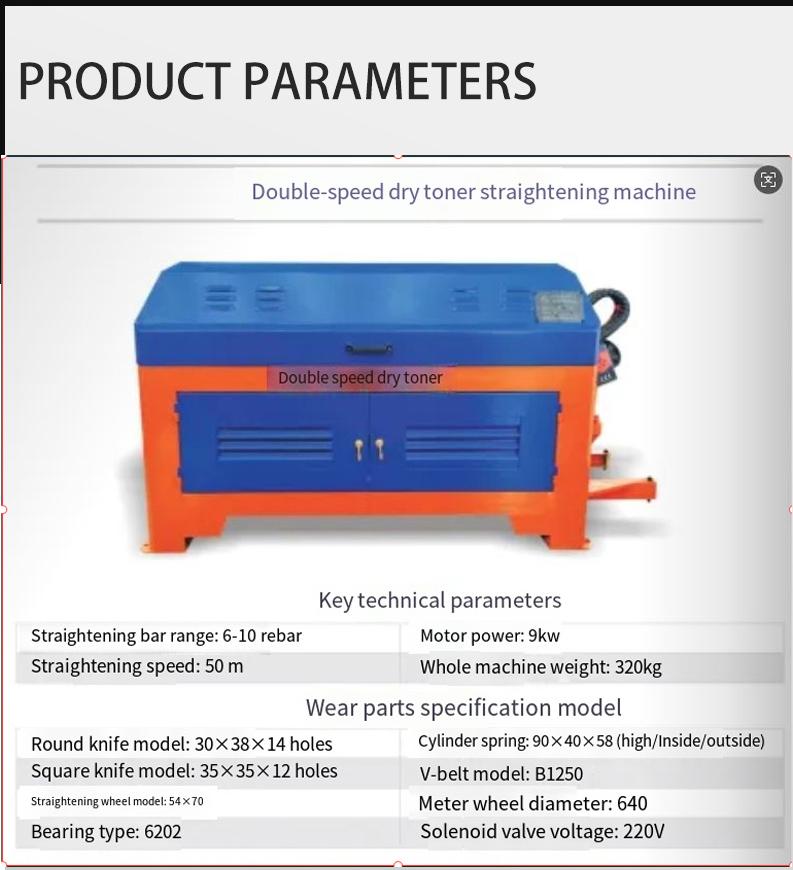

Product Parameter
| Trade Name | Bar Straightener | Bar Straightener | Bar Straightener |
| Product Number | GJ0005 | GJ0006 | GJ0007 |
| Product Model | GT4-14(76-meter frequency conversion) | GT5-14(90-meter frequency conversion） | GT5-14（100-meter frequency conversion） |
| Motor Power | Straightening motor11KW/oil pump motor5.5KW | Straightening motor15kw/oil pump motor5.5kw | Straightening motor18.5kw/oil pump motor5.5kw |
| Straightening Speed | 0-76m/min | 0-90m/min | 0-100m/min |
| Wire Range | φ6-φ12mm | φ6-φ12mm | φ6-φ12mm |
| Maxlength | 99m | 99m | 99m |
| Weight | 1000kg | 1000kg | 1200kg |
| Boundary Dimension | 2450*700*1100mm | 2600*700*1100mm | 2700*700*1100mm |
