National standard motor 800 cast steel straightening frame straightening machine
Standardly equipped with national standard motors Suitable for steel bar processing plants and on-site wire processing scenarios Made with international materials
Equipped with a reinforced frame to enhance operational stability Also benefits from an appearance patent The straightening frame is adjustable for convenience Supports 30-centimeter short material cutting to meet batch processing requirements It is an efficient and durable commercial wire straightening equipment
- Overview
- Selling Point Of A Product
- Applicable Ambient
- Product Parameter
- Product Details
- Recommended Products
National standard motor 800 cast steel straightening frame straightening machine
Selling Point Of A Product
Bar Straightener
GJ0001:National standard sheet material, heavy-duty frame, straightening wheel, with a warranty of 1500 tons.
GJ0002:Appearance patent, easy to adjust the straightening frame, national standard sheet material, reinforced frame, capable of cutting 30-centimeter short pieces
GJ0004:Appearance patent, easy to adjust the straightening frame, national standard sheet material, reinforced frame, capable of cutting 30-centimeter short pieces

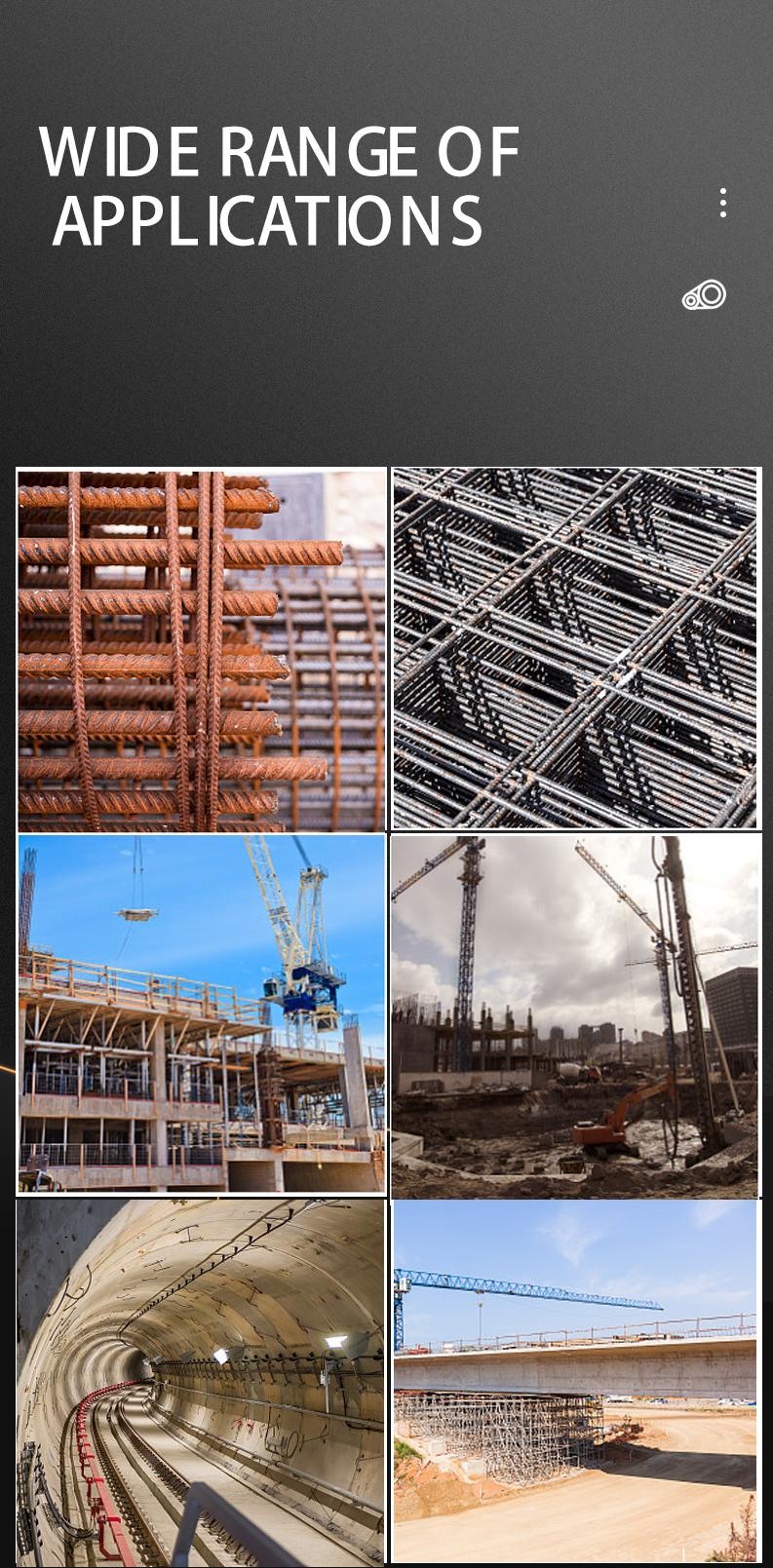

Applicable Ambient
Suitable for steel bar processing plants and on - site wire rod processing.

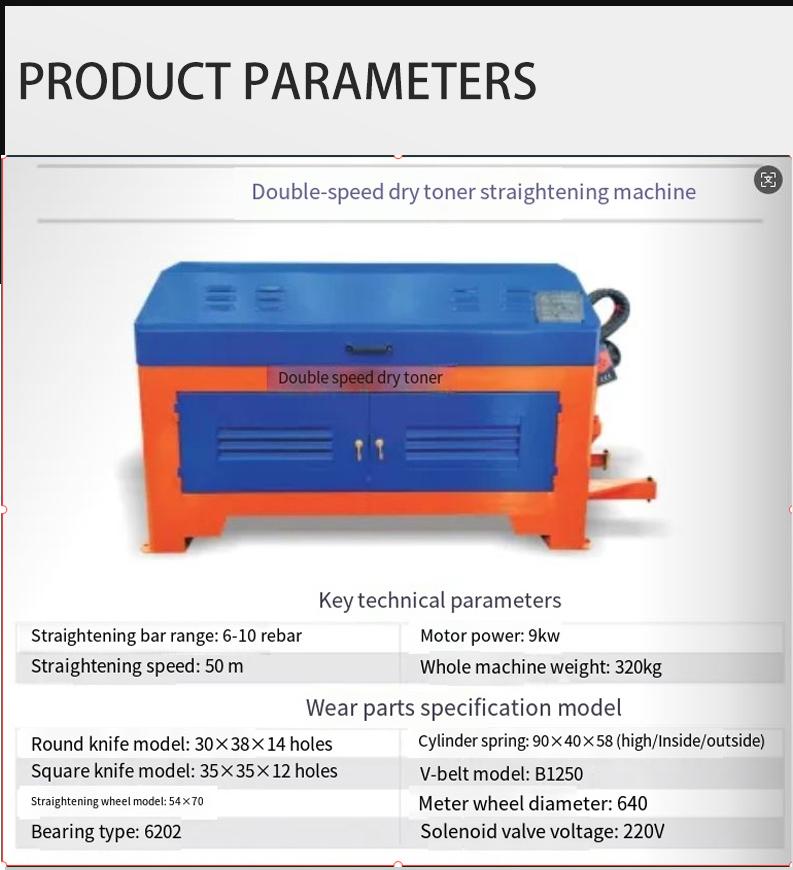

Product Parameter
| Trade Name | Bar Straightener | Bar Straightener | Bar Straightener |
| Product Number | GJ0001 | GJ0002 | GJ0004 |
| Product Model | GT4-14A(Variable speed) | GT4-14B(double speed) | GT4-14C(Two-speed false traction) |
| Motor Power | 9kw | 9KW/11KW | 9KW/11KW |
| Straightening Speed | 35-48m/min | 28-55/60m/min | 28-55/60m/min |
| Wire Range | φ4-φ12mm | φ6-φ10/12mm | φ6-φ10/12mm |
| Maxlength | 99m | 99m | 99m |
| Weight | 330kg | 380/430kg | 550/650kg |
| Boundary Dimension | 1750*650*950mm | 1800*800*900mm | 2000*700*1100mm |
Product Details
