National standard motor Heavy-duty crane frame straightening machine
Suitable for multiple scenarios Specifically designed for steel bar processing plants and construction site wire processing it meets the requirements for batch wire processing
Outstanding core advantages It has an appearance patent The heavy-duty frame is made of national standard plates and the straightening frame is easy to adjust and saves effort It can precisely cut 30-centimeter short materials balancing efficient processing and operational flexibility.
- Overview
- Applicable Ambient

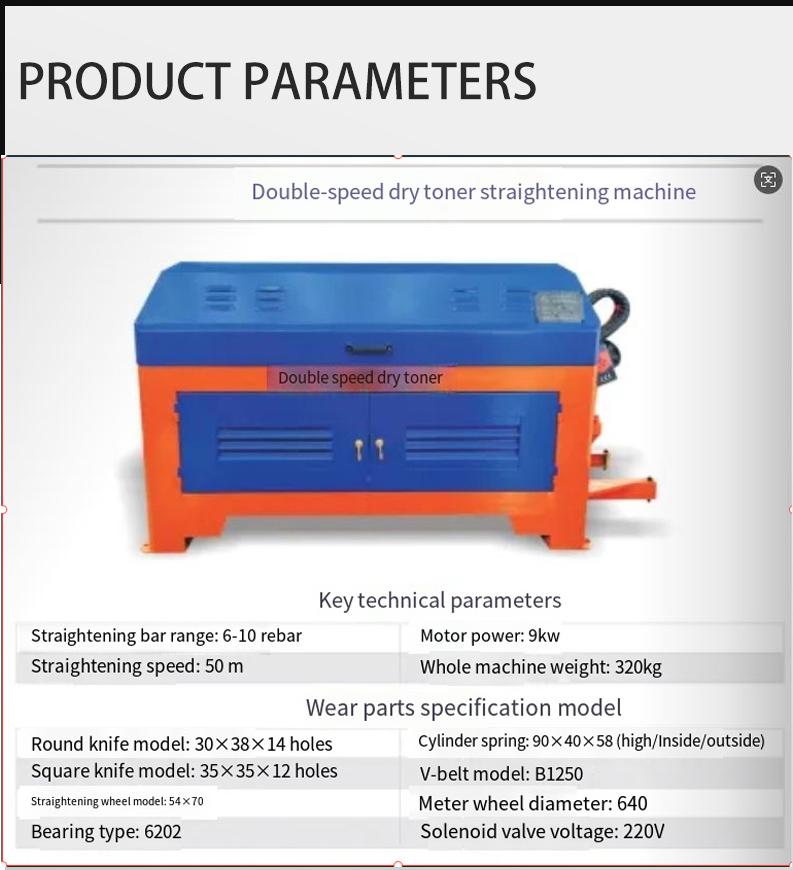

- Product Parameter
- Product Details

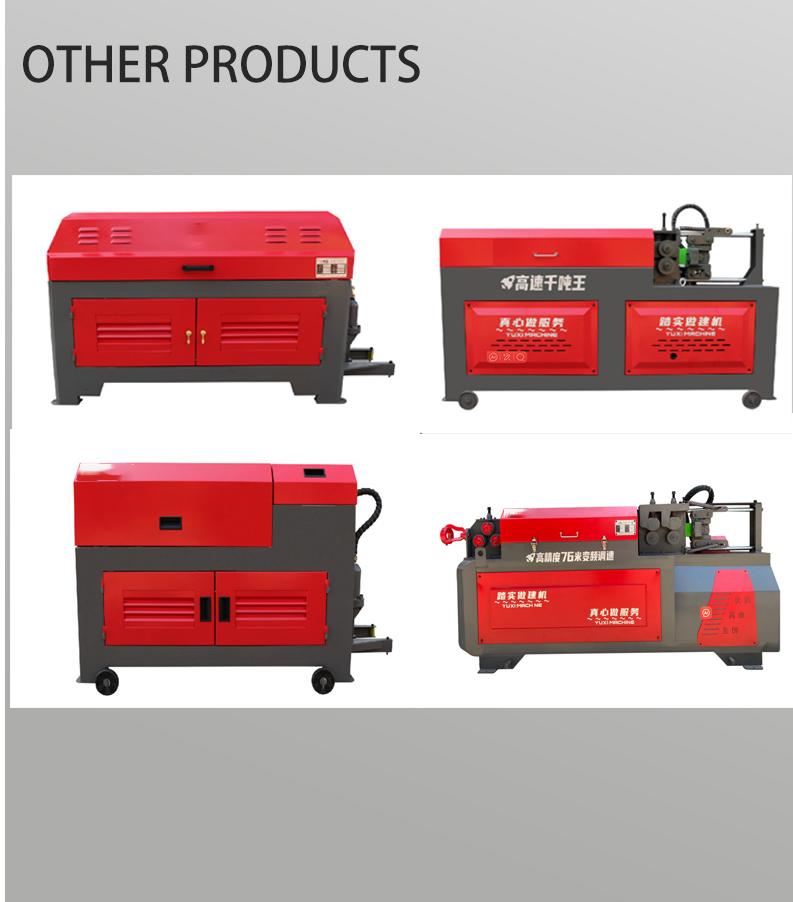

- Recommended Products

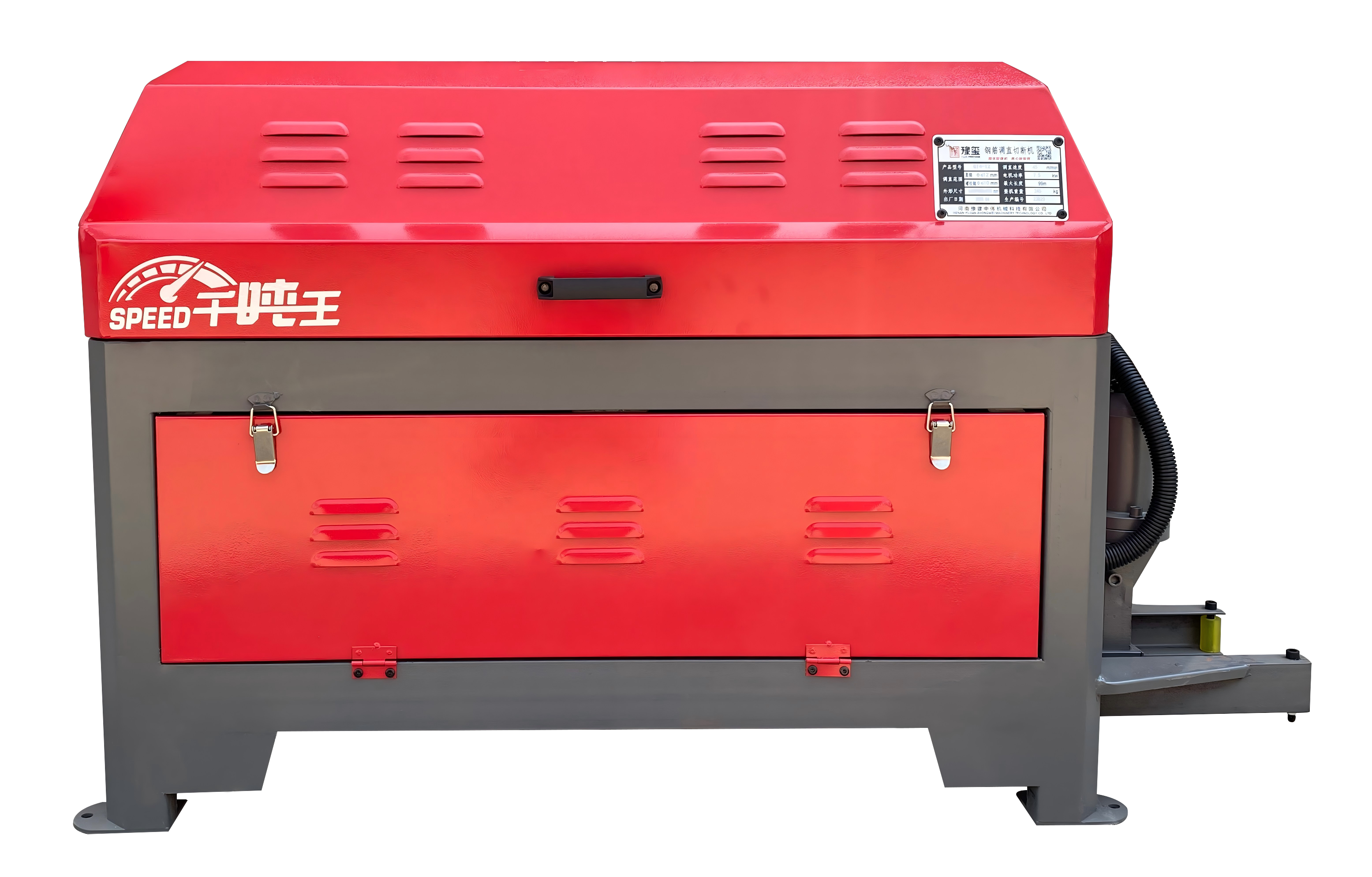

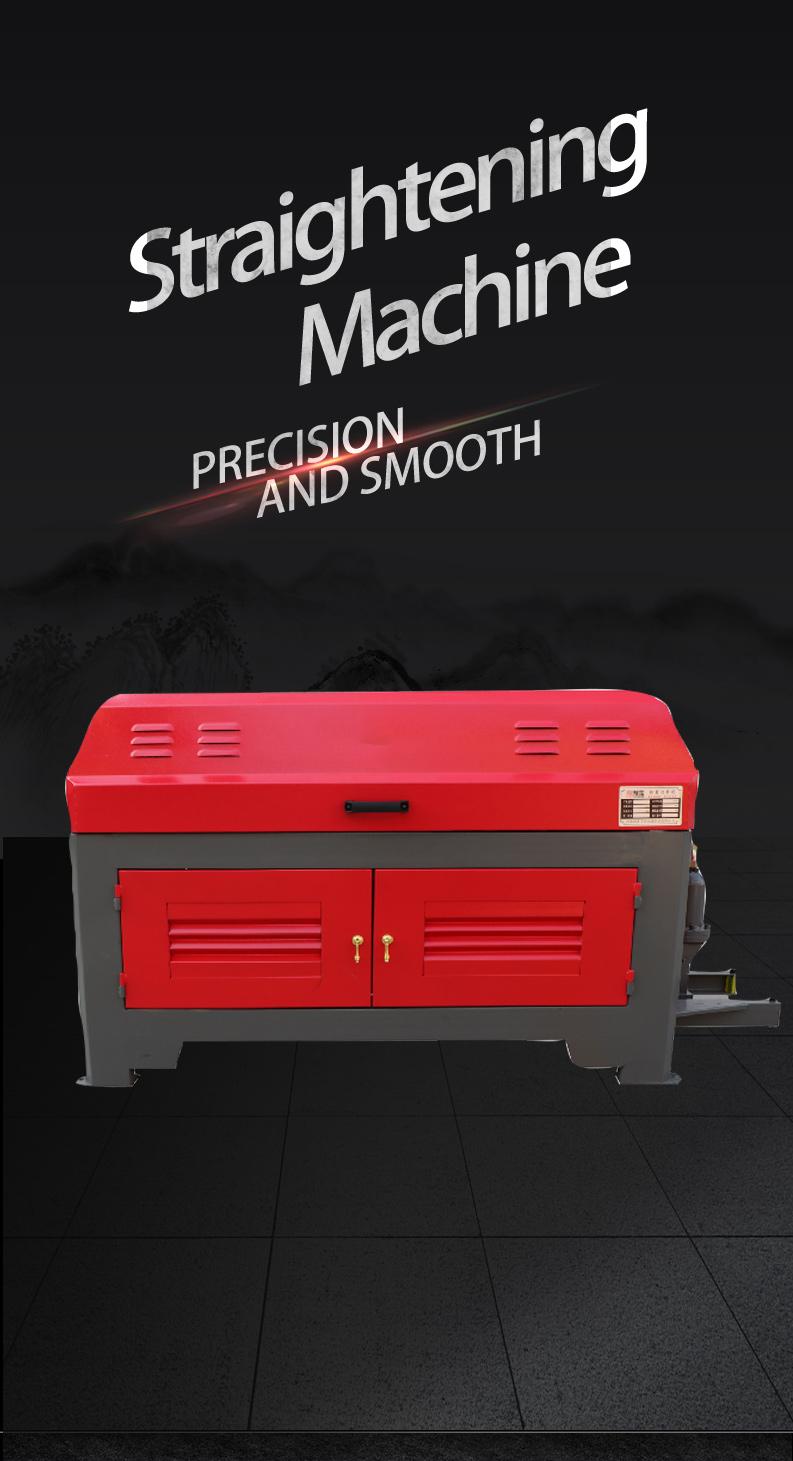

National standard motor Heavy-duty crane frame straightening machine
Applicable Ambient
GJ0008:Suitable for steel bar processing plants and on-site wire rod processing sites
GJ0009:Suitable for steel bar processing plants and on-site wire rod processing sites
GJ0072:Suitable for steel bar processing plants and on-site wire rod processing sites
| Trade Name | Bar Straightener | Bar Straightener | Bar Straightener |
| Product Number | GJ0008 | GJ0009 | GJ0072 |

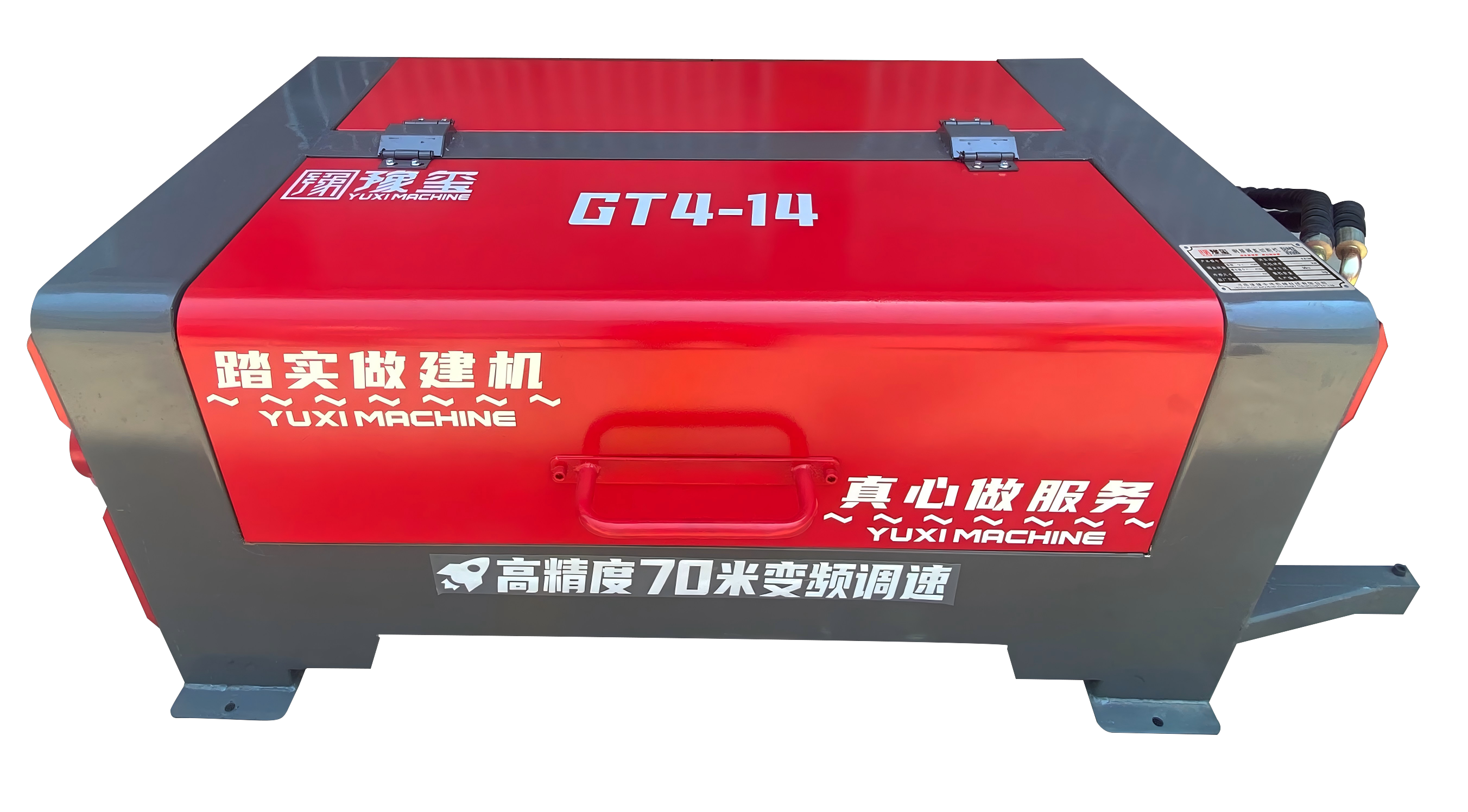

| Product Model | GT4-14(76 meters without traction) | GT4-14CW(Double-speed horizontal type) | GT4-12/7.5（Thousand-ton King） |
| Motor Power | Straightening motor11kw/oil pump motor4kw | 9KW/11KW | 7.5kw |
| Straightening Speed | 0-76m/min | 25-55/60m/min | 45m/min |
| Wire Range | φ4-12mm | φ6-10/12mm | φ6-φ10/12mm |
| Maxlength | 99m | 99m | 99m |
| Weight | 960kg | 450kg/530kg | 245kg |
| Boundary Dimension | 2450*700*1100mm | 1800*1000*600mm | 1600*600*900mm |
Product Details
