Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine

Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine

Request a Quote
  • Overview

Overview

VR
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine factory
mango juice extractor machine / calamansi juice extractor machine
Product Description
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine manufacture
Use and scope of application:
1.Used for pressing pineapple, apple, pear and other fruits;
2.It is used for pressing mulberries, grapes, oranges, oranges and other berries.
3.It is used for pressing tomatoes, ginger, garlic, celery and other vegetables.
4.Screw push extrusion;
5.Fully automatic juicing and slag removal of berries, kernels and vegetables;

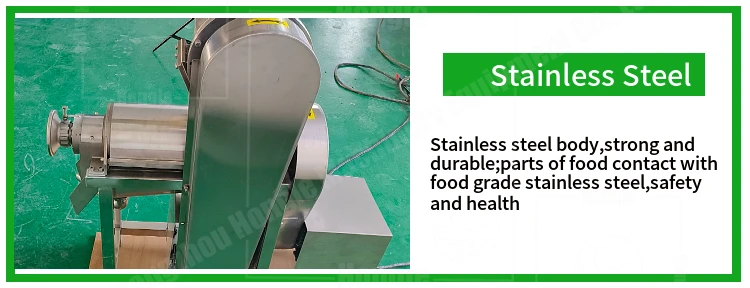

6.The contact part with materials is made of national standard 304 stainless steel.
7.The rack material can be made of national standard 304 stainless steel.
Equipment structure and working principle:
 1.  Structure:

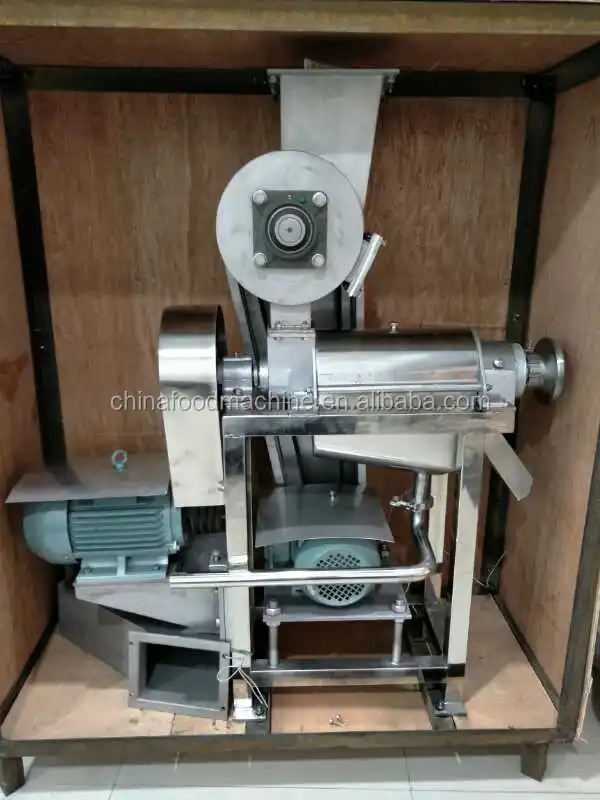

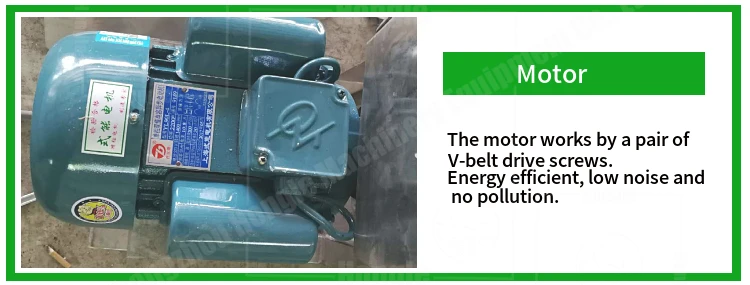

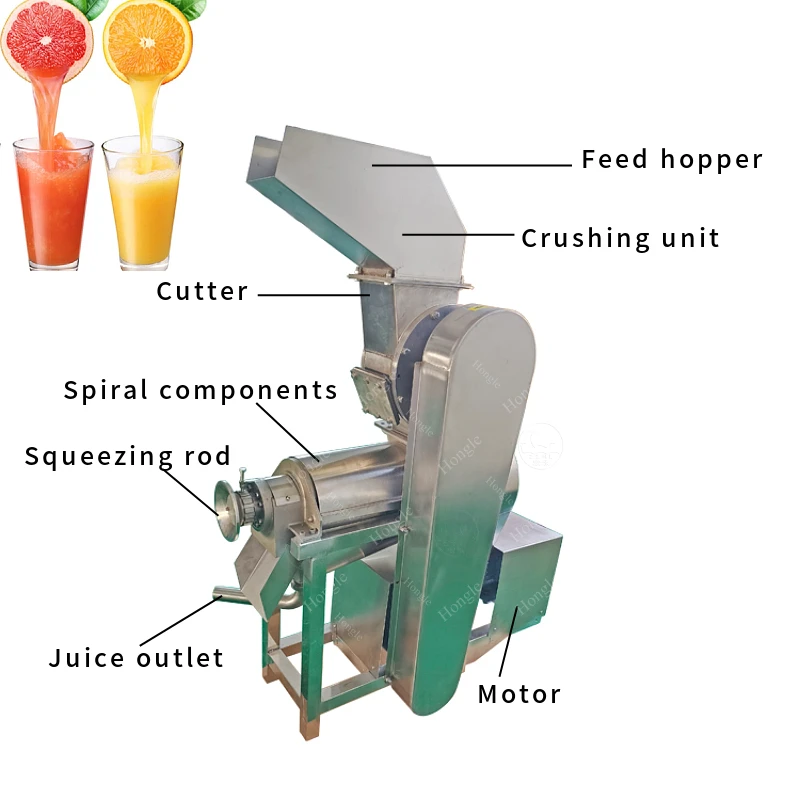

The screw spindle is composed of front support, feed hopper, crushing, screw, filter screen, juicer, rear support and slag discharge groove. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat. The motor drives the screw through a pair of triangular belt pulleys.
 2. Working principle:

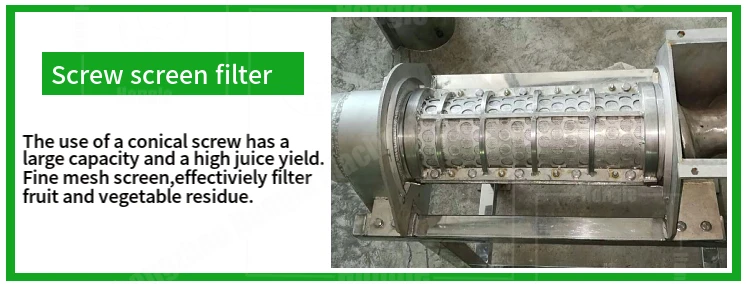

The main component of the equipment is that the bottom diameter of the screw increases gradually along the direction of the slag outlet, while the pitch decreases gradually. When the material is propelled by the screw, the screw cavity shrinks, resulting in the squeezing of the material.
The rotation direction of the spiral spindle is clockwise from the feed hopper to the slag trough. The raw material is added into the hopper and pressed by the screw. The squeezed juice flows into the bottom Juicer through the filter. The waste is discharged through the annular gap formed between the screw and the conical part of the pressure regulator. The size of the gap can be adjusted by the movement of the pressure regulator along the axis. It is used clockwise (when the bearing is rotated from the slag discharge trough of the equipment to the end of the feeding hopper, the pressure regulating head moves to the left, and the void is narrowed, and vice versa, the void is enlarged). Change the size of the void, that is, adjust the resistance of slag discharge.
The slag yield can be changed, but if the void is too small, under the strong extrusion, some slag particles will be extruded through the filter together with the juice. Although the juice yield increases, the quality of the juice decreases relatively. The void size should be determined by the specific process requirements of users.

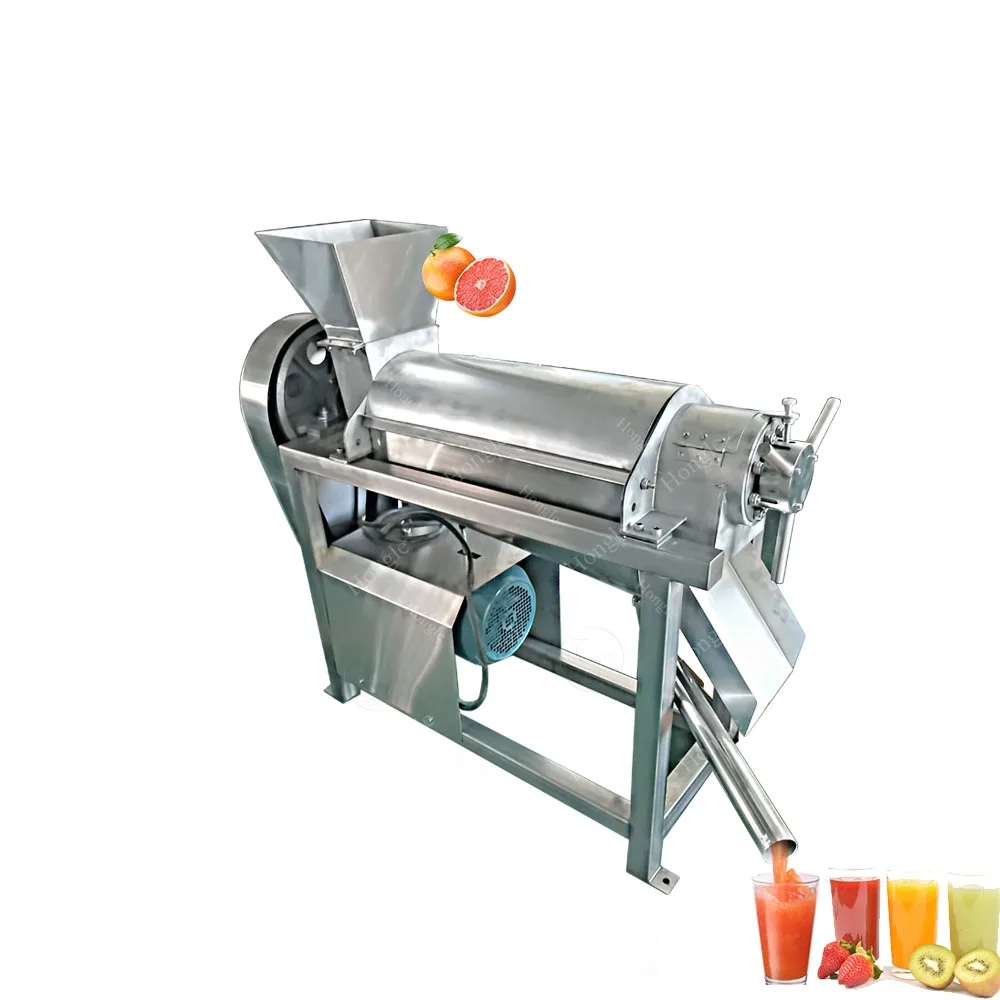

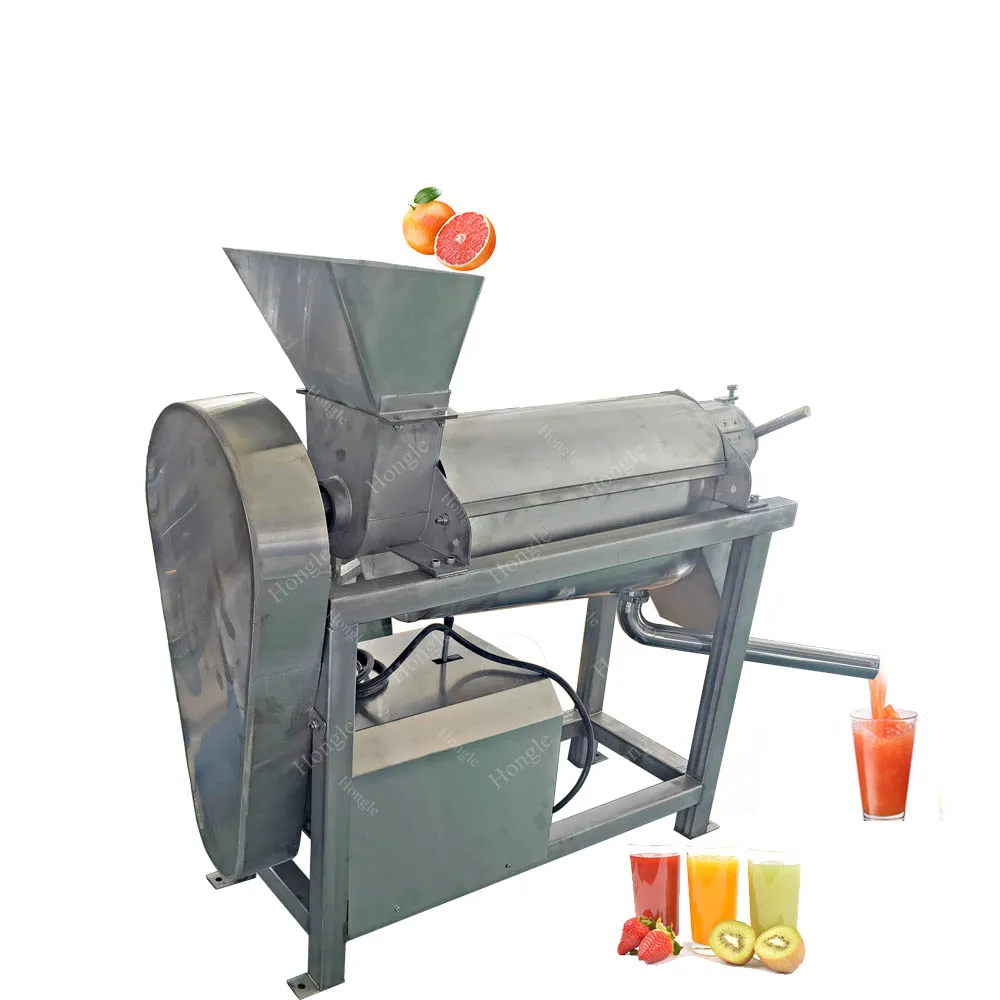

Stainless steel spiral fruit and vegetable juicer is suitable for beating and separating fresh fruits and vegetables. Products such as orange, grape, kiwifruit, mulberry, bayberry, peach (pitted) can be made into jam juice, which can separate the pit, seed and thin skin of fruit. Vegetable juice can also be made from green vegetables (cut off) tomato, pepper, celery (cut off).
Vegetable tendons can be separated. It is an ideal machine for making jam, fruit juice and vegetable juice. It is an important equipment for food processing enterprises.

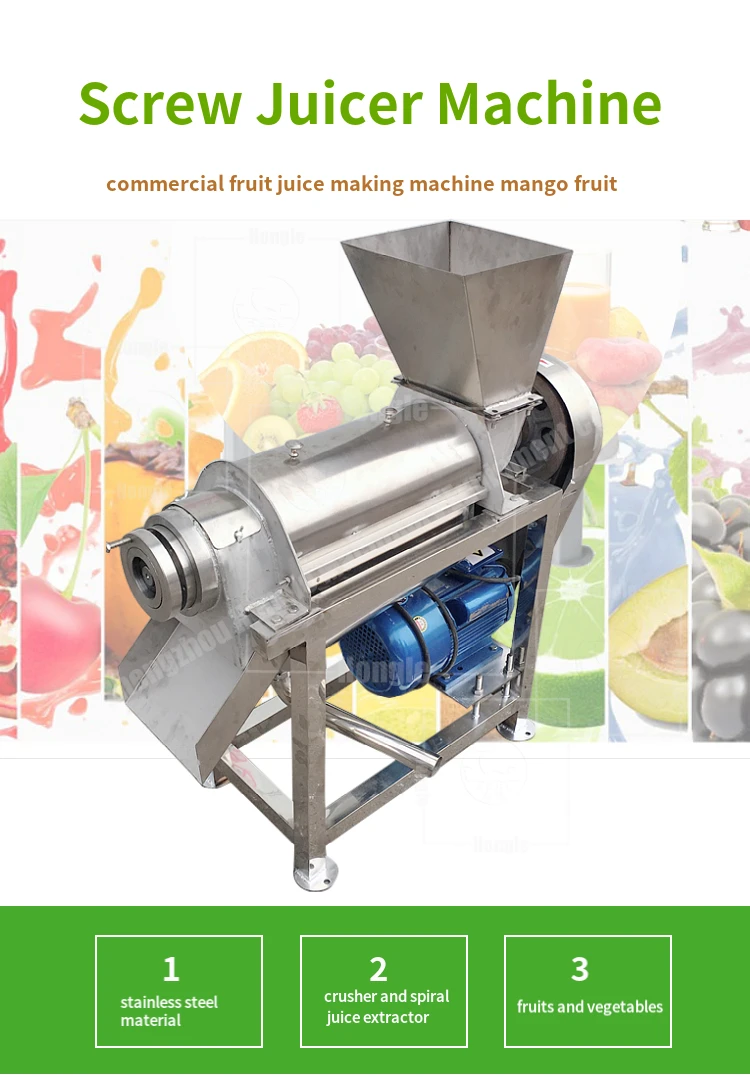

fruits and vegetable Stainless Steel Spiral Screw Cold Press Juicer/ extractor juice machine Parameters
Model
HL-ZZ-0.5T
HL-ZZ-1T
HL-ZZ-1.5T
HL-ZZ-2.5T
Capacity
500(KG/H)
1000(KG/H)
1500(KG/H)
3000(KG/H)
Voltage
220v 2.2kw 380v 1.5kw
220v 3kw 380v
380v 7.5kw
380v 11kw
Screen size
0.6 mm
0.6mm
0.6mm
0.6mm
spiral diameter
88 mm
125mm
Machine size
800*350*1000(MM)
950*400*1100(MM)
1290*400*1250(MM)
1600*700*1520(MM)
Weight
80(KG)
130(KG)
215(KG)
450(KG)
Detailed Images
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine supplier
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine details
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine manufacture
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine details
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine factory
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine factory
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine supplier
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine details
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine factory
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine details
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine factory
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine manufacture

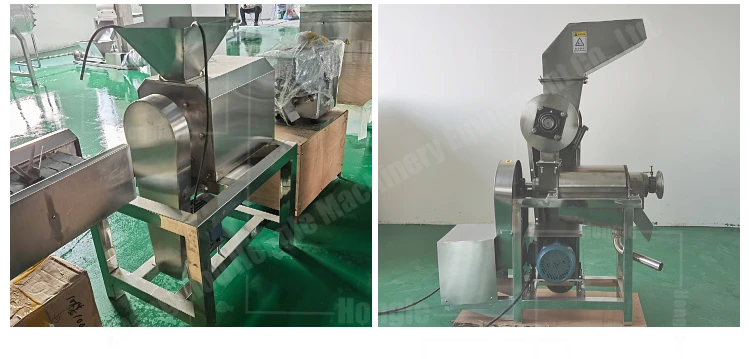

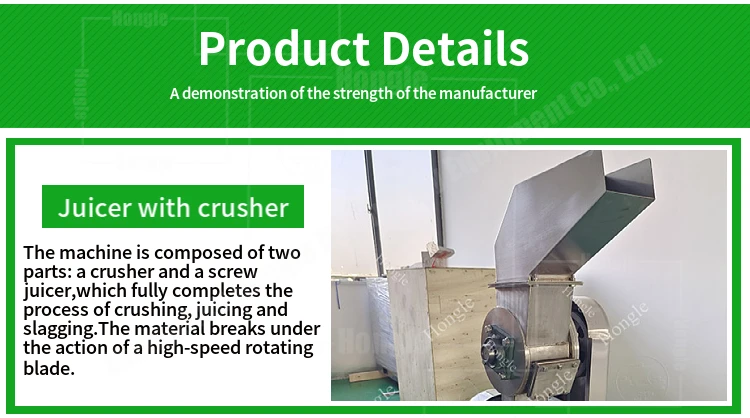

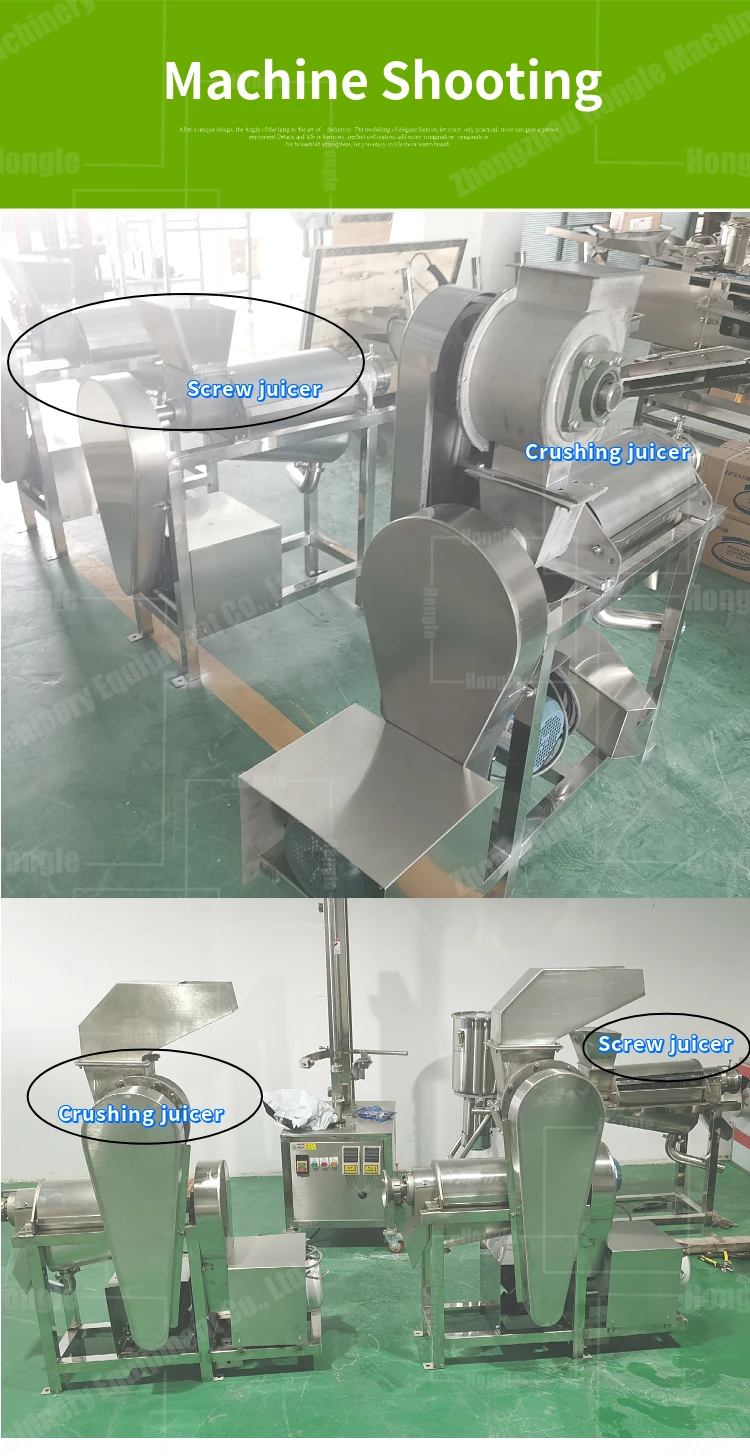

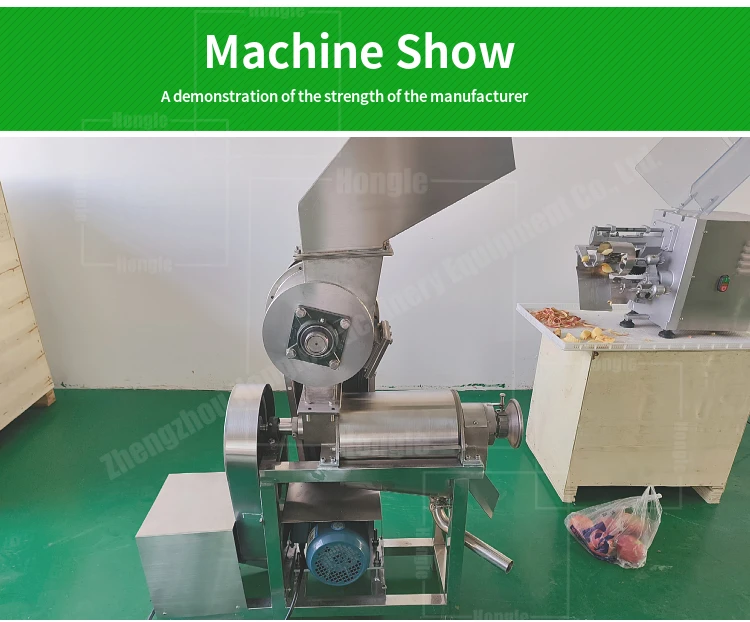

Juicer with crusher
Juicer with broken, Suitable for larger whole fruits
Multifunction fruits and vegetable extractor with crusher Parameters
Model
HL-ZZ-0.5T
HL-ZZ-1T
HL-ZZ-1.5T
HL-ZZ-2.5T
Capacity
500(KG/H)
1000(KG/H)
1500(KG/H)
3000(KG/H)
Voltage
220v 2.2kw 380v 1.5kw
380v 1.5kw*3kw
380v
380v 11kw*4kw
Screen size
0.6 mm
0.6mm
0.6mm
0.6mm
spiral diameter
88 mm
125mm
Machine size
800*350*1000(MM)
1300*500*1550(MM)
1250*550*1750(MM)
1580*760*2050(MM)
Weight
80(KG)
220(KG)
256(KG)
520(KG)
Dimension
900*360*1300mm
950*400*1450mm
1600*450*1700mm
2000*700*2100mm
Related Products
Commercial Fruit Juice Making Machine Orange mango Calamansi Juice Extractor Machine details
Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
