Commercial Passion Fruit Citrus Orange Juicer Juice Extractor Making Machine for Small Business Low Cost
- Overview
- Recommended Products

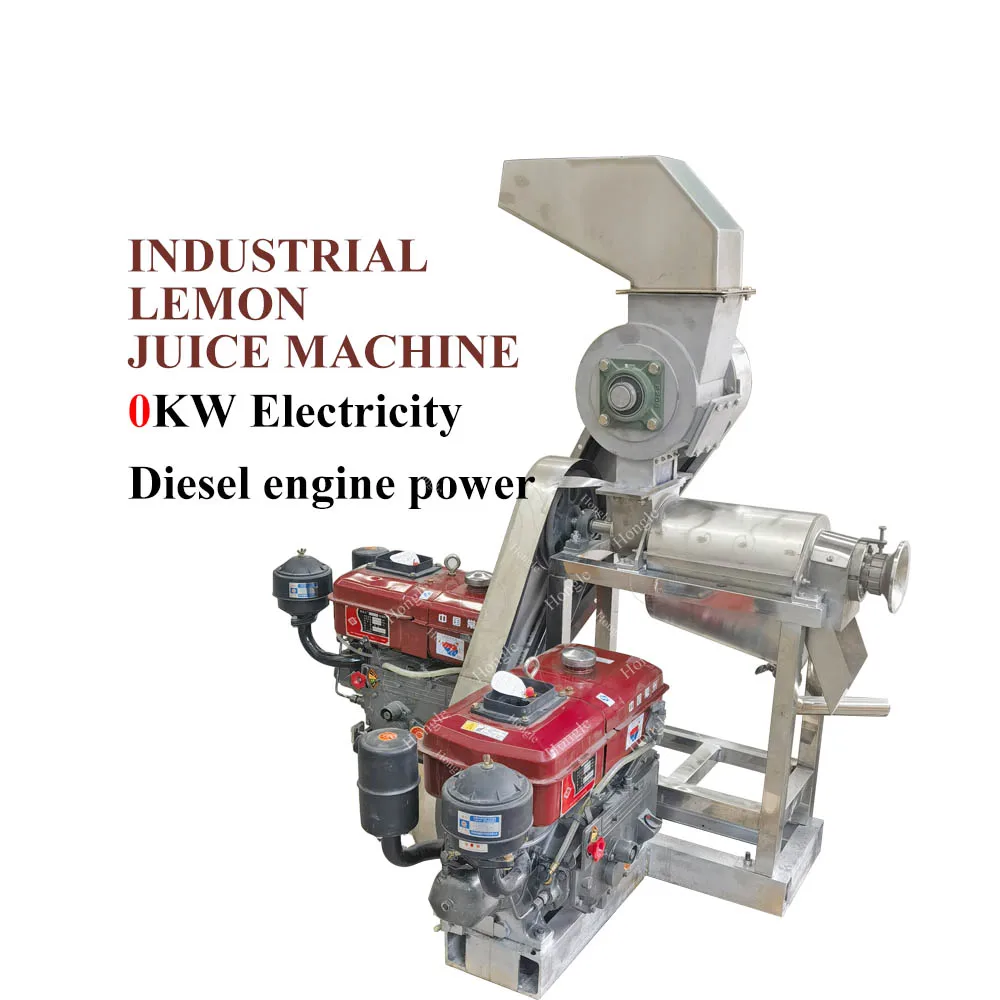

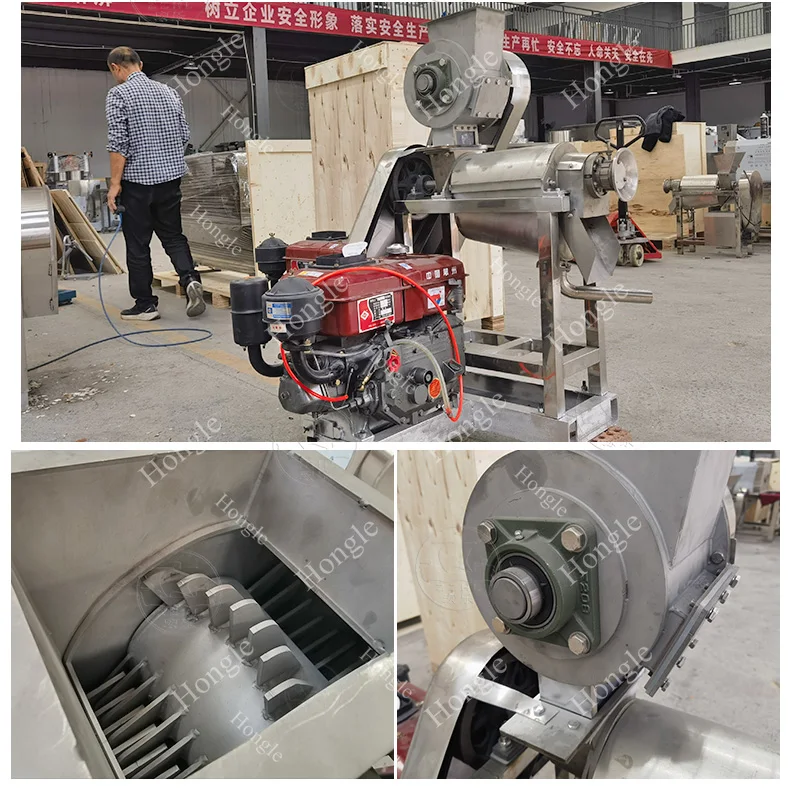

fruit press juice extractor mill juicer diesel engine
Product Description
Use and scope of application:
1.Used for pressing pineapple, apple, pear and other fruits;
2.It is used for pressing mulberries, grapes, oranges, oranges and other berries.
3.It is used for pressing tomatoes, ginger, garlic, celery and other vegetables.
4.Screw push extrusion;
5.Fully automatic juicing and slag removal of berries, kernels and vegetables;
6.The contact part with materials is made of national standard 304 stainless steel.
7.The rack material can be made of national standard 304 stainless steel.
Equipment structure and working principle:
1. Structure:
The screw spindle is composed of front support, feed hopper, crushing, screw, filter screen, juicer, rear support and slag discharge groove. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat. The motor drives the screw through a pair of triangular belt pulleys.
2. Working principle:
The main component of the equipment is that the bottom diameter of the screw increases gradually along the direction of the slag outlet, while the pitch decreases gradually. When the material is propelled by the screw, the screw cavity shrinks, resulting in the squeezing of the material.
1.Used for pressing pineapple, apple, pear and other fruits;
2.It is used for pressing mulberries, grapes, oranges, oranges and other berries.
3.It is used for pressing tomatoes, ginger, garlic, celery and other vegetables.
4.Screw push extrusion;
5.Fully automatic juicing and slag removal of berries, kernels and vegetables;
6.The contact part with materials is made of national standard 304 stainless steel.
7.The rack material can be made of national standard 304 stainless steel.
Equipment structure and working principle:
1. Structure:
The screw spindle is composed of front support, feed hopper, crushing, screw, filter screen, juicer, rear support and slag discharge groove. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat. The motor drives the screw through a pair of triangular belt pulleys.
2. Working principle:
The main component of the equipment is that the bottom diameter of the screw increases gradually along the direction of the slag outlet, while the pitch decreases gradually. When the material is propelled by the screw, the screw cavity shrinks, resulting in the squeezing of the material.
fruits and vegetable Stainless Steel Spiral Screw Cold Press Juicer/ extractor juice machine Parameters
Model |
HL-ZZ0.5 |
HL-ZZ1 |
HL-ZZ1.5 |
HL-ZZ2.5 |
Capacity |
0.1-0.5t |
1t/h |
1.5t/h |
2.5t/H |
Screw diameter (mm) |
80mm |
125mm |
175mm |
247MM |
Screw juicer speed(r.p.m) |
380 |
380 |
380 |
380 |
Screen pore size(mm) |
0.6mm |
0.6mm |
0.6mm |
0.6mm |
Power |
1.5kw |
2.5kw |
4kw |
380V/11kw |
Dimension |
700*360*900mm |
950*400*1100mm |
1300*450*1357mm |
2000*700*1850mm |

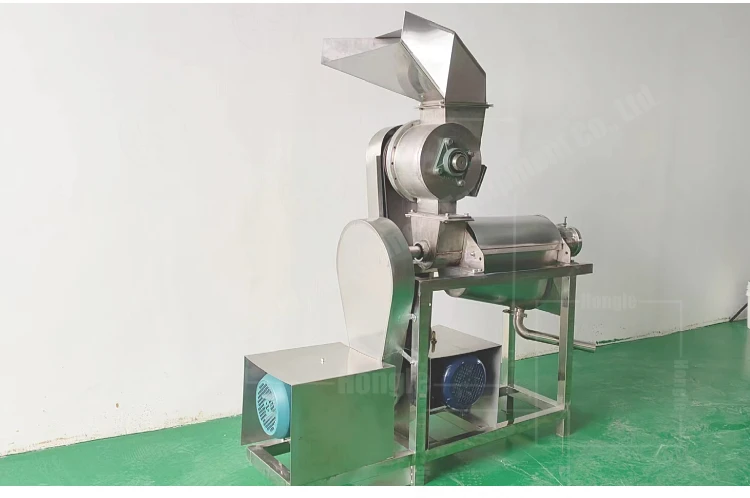

Multifunction fruits and vegetable extractor with crusher Parameters
Model |
HL-ZZFS0.5 |
HL-ZZFS1 |
HL-ZZFS1.5 |
HL-ZZFS2.5 |
Capacity |
0.1-0.5t |
1t/h |
1.5t/h |
2.5t/H |
Screw diameter (mm) |
80mm |
125mm |
175mm |
247MM |
Screw juicer speed(r.p.m) |
380 |
380 |
380 |
380 |
Screen pore size(mm) |
0.6mm |
0.6mm |
0.6mm |
0.6mm |
Screw juicer motor Power |
1.5kw |
2.5kw |
4kw |
380V/11kw |
Crusher motor Power |
0.7KW |
1.5KW |
1.5KW |
1.5KW |
Dimension |
900*360*1300mm |
950*400*1450mm |
1600*450*1700mm |
2000*700*2100mm |
Detailed Images
Related Products
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
