Factory Mini Dairy 100 Liter Milk Pasteurizer Farm Equipment Milk Pasteurizer Machine For Wholesales

Product Description

Introduction:

Electric heating Pasteur sterilization machine with the feature of the high temperature resistance, corrosion resistance, strong production capacity, no need steam heating etc, and is mainly used for milk, medicine, beverage, scientific research and industry departments.
Pasturing machine consists of pot body, pot, mixer, heating jacket, supporting and transmission device, the shaft sealing equipment etc. Pot body, pot, mixer, and shaft seal, electric heating device etc all made of by (USU304) stainless steel.
The pot body connects with pot cover; at the bottom of pot body have feeding hole, with agitator in the machine.
The heating jackets have feeding, temperature measurement, emptying valve, electric heat stick etc.

product mini pasteurization plant milk sterilization machine yogurt making machine 100 liter milk pasteurizer homogenizer-0

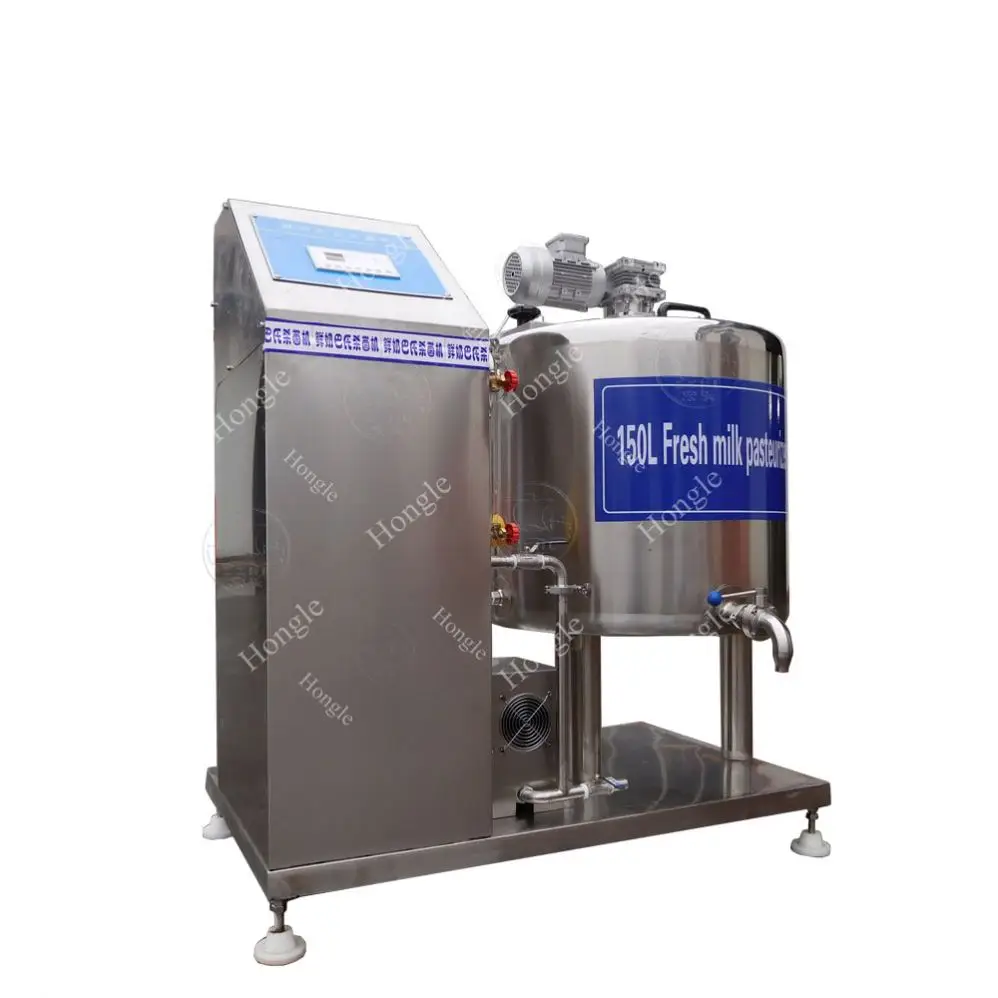

Economical type dairy pasteurize machine

Economical Pasteurizer Machine ,The more widely used pasteurization tank, adopts pasteurization method to sterilize, pasteurize milk. It needs to be refrigerated at 4°C-10°C throughout the whole process, which is more popular. Preserve the nutrients in milk. Milk with a short shelf life is mostly "homogeneous" milk sterilized by pasteurization. This method of sterilizing can make the nutrients in the milk more ideally preserved. It is the most advanced milk sterilizing method in the world today.

model	HL-E-150L
Barrel inner diameter	630mm
barrel outer diameter	740mm
Inner Height of Milk Tank	600mm
Yield	10-150L/batch
Sterilization temperature	60-90 degrees Celsius (adjustable)
Material	Stainless steel lead screw adjustment nut
power supply	380V/9kw
machine size	14008001400mm
weight	190kg

product mini pasteurization plant milk sterilization machine yogurt making machine 100 liter milk pasteurizer homogenizer-1

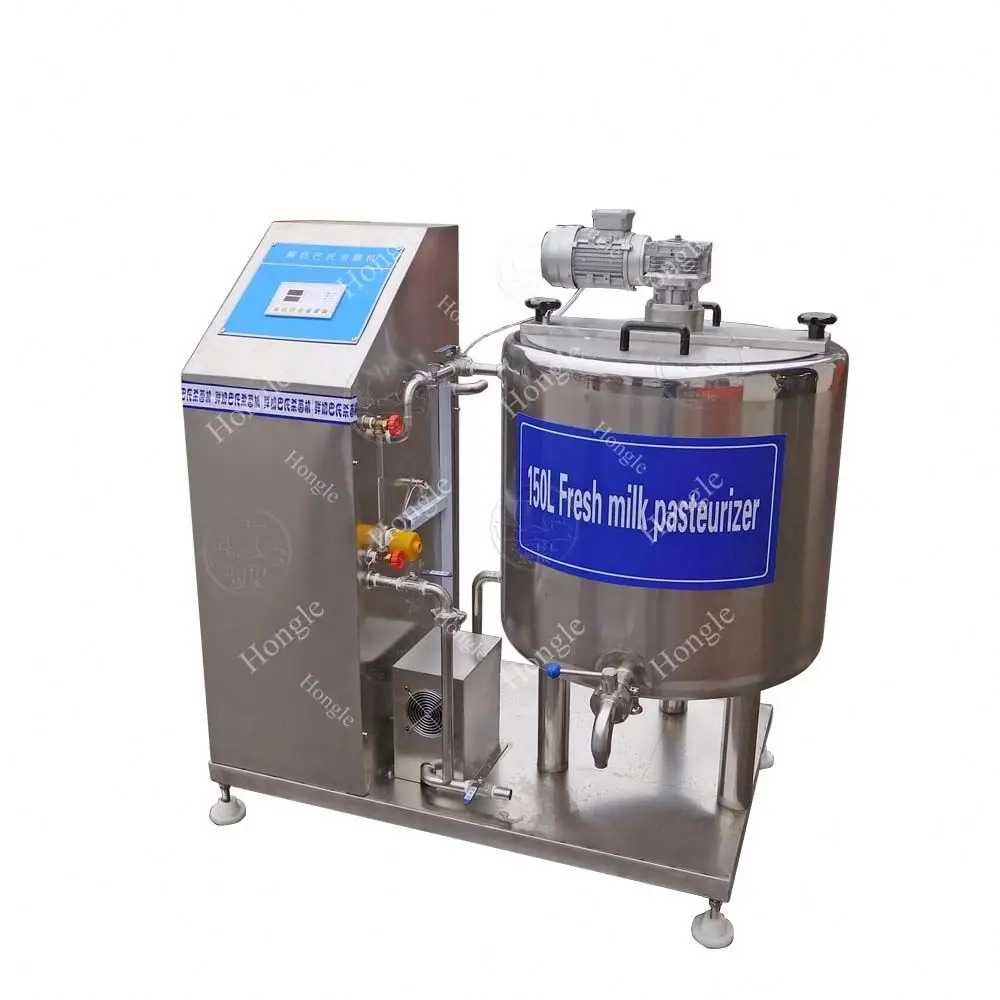

Compressor refrigerated milk sterilization machine

Compression refrigeration is the use of industrial compressor refrigeration, industrial
compressor features: durable, refrigeration effect is good.

model	HL-C-200L
material	SUS304
Unit power	3P
Barrel inner diameter	630mm
barrel outer diameter	740mm
Yield	10-200kg/batch
Overall height	1900mm
Sterilization temperature	60-99 degrees Celsius (adjustable)
heating cycle	25-35min
power supply	380v 13kw
Dimensions	19008001980mm
equipment weight	about 400kg

product mini pasteurization plant milk sterilization machine yogurt making machine 100 liter milk pasteurizer homogenizer-2

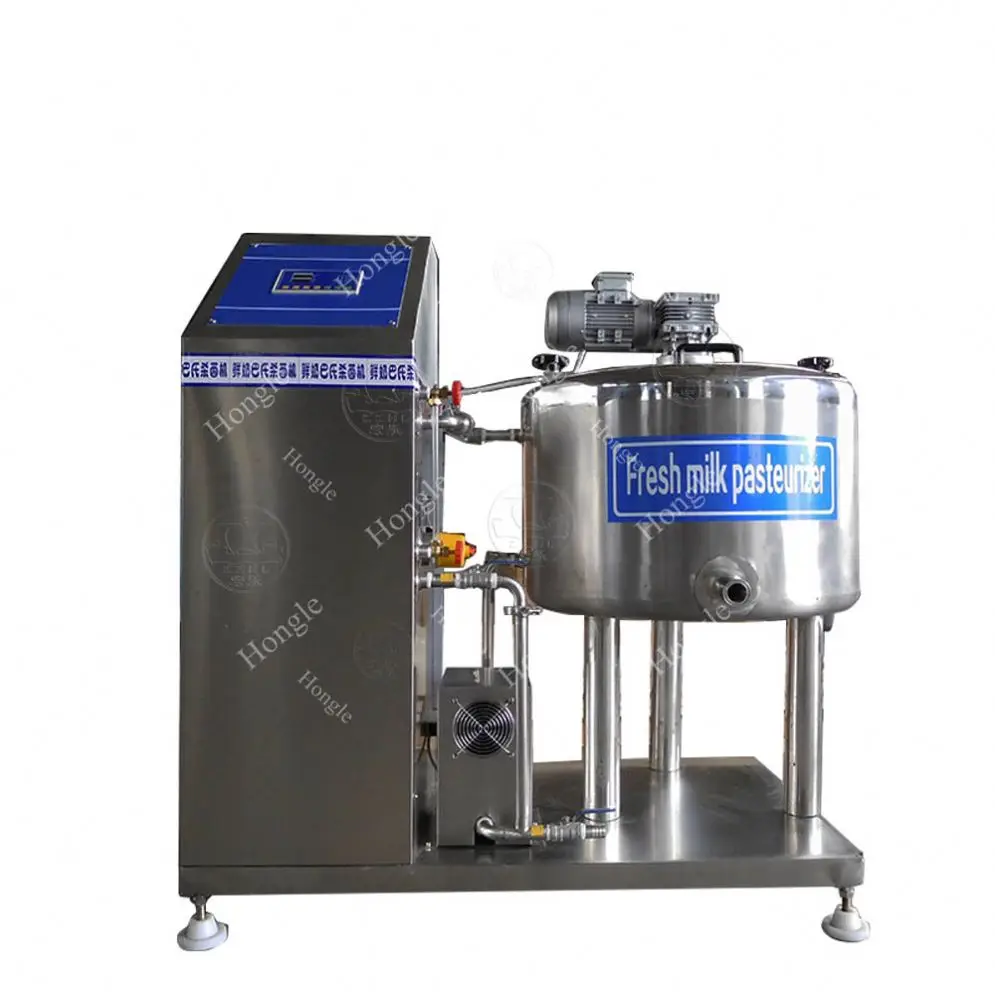

Refrigerated milk sterilization tank

Sterilization process:

the heating tube heats the right water tank, the temperature of the hot water rises, and enters the interlayer of the tank through the circulation pump,and the temperature of the milk in the tank rises.
Cooling:

close, enter, water inlet, cold water, cold water, cold water tank interlayer flow flow low temperature storage.

Technical Parameters

model	HL-R-100L	HL-R-200L	HL-R-500L
equipment structure	2P compressor+100L pasteurizer+hot water tank	3P compressor+200L pasteurizer+hot water tank	3P compressor+500L pasteurizer+hot water tank
material	SUS304	SUS304	SUS304
Unit power	2P	3P	3P
Barrel inner diameter	625mm	630mm	1000mm
The height of the milk bucket plus legs	1140mm	1530mm	1800mm
Inner Height of Milk Tank	605mm	670mm	850mm
Yield	50-100kg/batch	100-200kg/batch	100-500kg/batch
Overall height	1980mm	1530mm	1800mm
power supply	380V/13kw	380v 13kw	380V/27kw
Dimensions	19008001980mm	250011001500mm	280011001800mm
weight	300kg	about 350kg	about 600kg

product mini pasteurization plant milk sterilization machine yogurt making machine 100 liter milk pasteurizer homogenizer-3

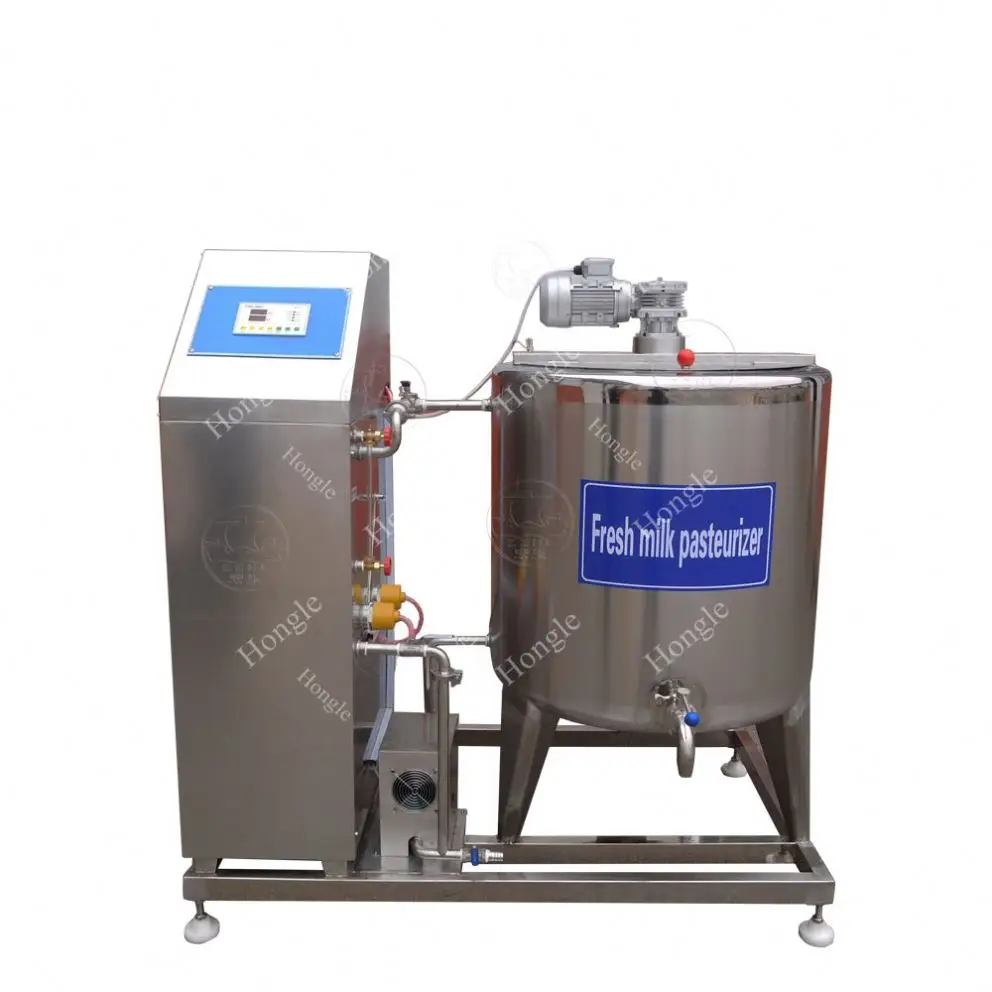

Single /Double tank milk pasteurize machine

Single-tank pasteurization is small in size and has a small water tank at the bottom. During sterilization, the hot water tank in the water tank is heated to 85 to carry out the sterilization process. When cooling, cold water is connected to the water tank, and the hot water in the water tank will flow out together with the cold water. Next time When sterilizing, reheat the cold water to 85 degrees to sterilize.

product mini pasteurization plant milk sterilization machine yogurt making machine 100 liter milk pasteurizer homogenizer-4

product mini pasteurization plant milk sterilization machine yogurt making machine 100 liter milk pasteurizer homogenizer-5

product mini pasteurization plant milk sterilization machine yogurt making machine 100 liter milk pasteurizer homogenizer-6
