1. Food industry: Aloe vera, pollen broken wall, pineapple, sesame, fruit tea, ice cream, moon cake stuffing, cream, jam, fruit juice, soybean, bean paste, bean paste, peanut milk, protein milk, soy milk, dairy products, Refined, flavors, all kinds of drinks, chicken bone, pigskin and other animal skin and so on.
2.Chemical industry: paint, pigment, dye, paint, lubricant, grease, diesel oil, petroleum catalyst, emulsified asphalt, adhesive, detergent, plastic, fiberglass.
3. Daily chemical: toothpaste, detergent, shampoo, shoe polish, cosmetics, bath essence, soap, balsam and so on.
4. Pharmaceutical Industry: Various syrups, nutritional solutions, proprietary Chinese medicines, pasty preparations, biological products, cod liver oil, pollen, royal jelly, vaccines, various ointments, various oral solutions, injection, intravenous drip,pancreatin, emulsion, etc. .
5. Construction industry: all kinds of paint: including interior and exterior paint, anti-corrosion waterproof coating, cold porcelain paint, colorful paint, ceramic glaze.
6.Other industries: plastic industry, textile industry, paper industry, biochemical industry, environmental protection and energy saving, coal flotation agent, nanomaterials, major colleges and universities, research institutes and so on.
- Overview
- Recommended Products

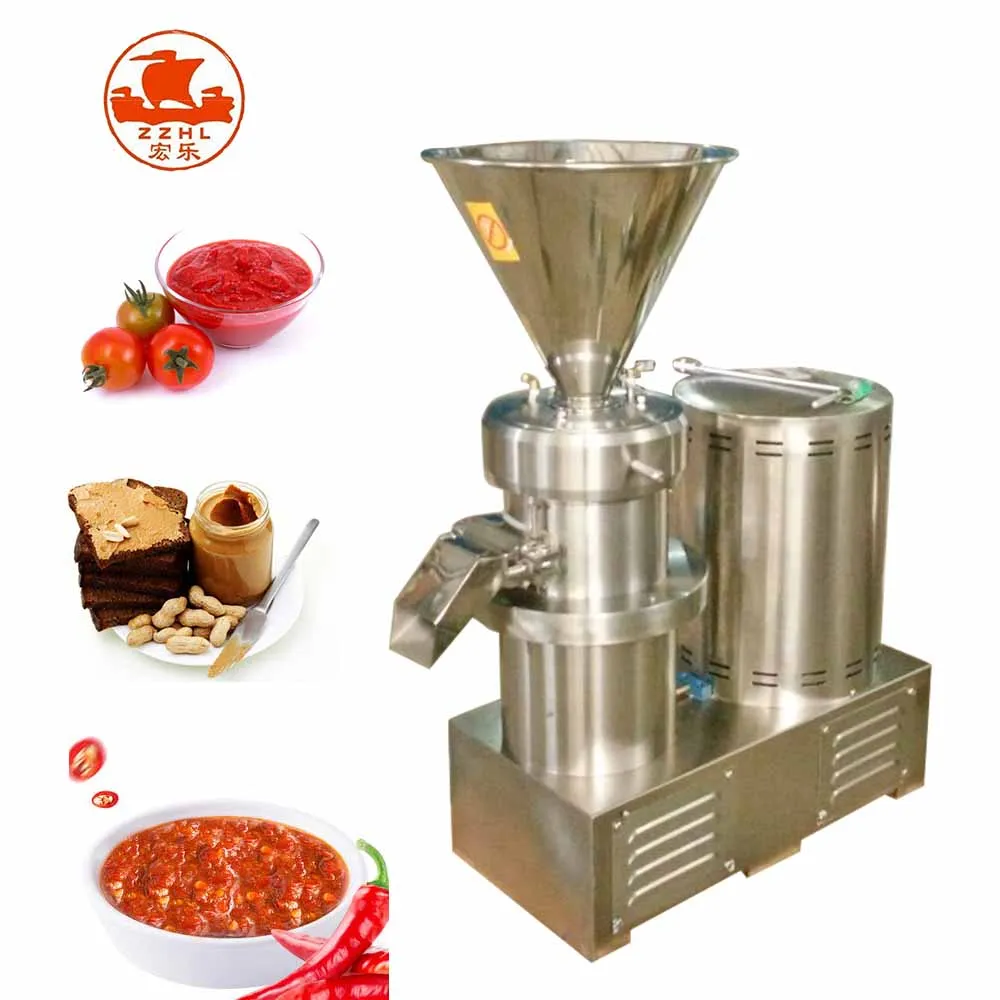

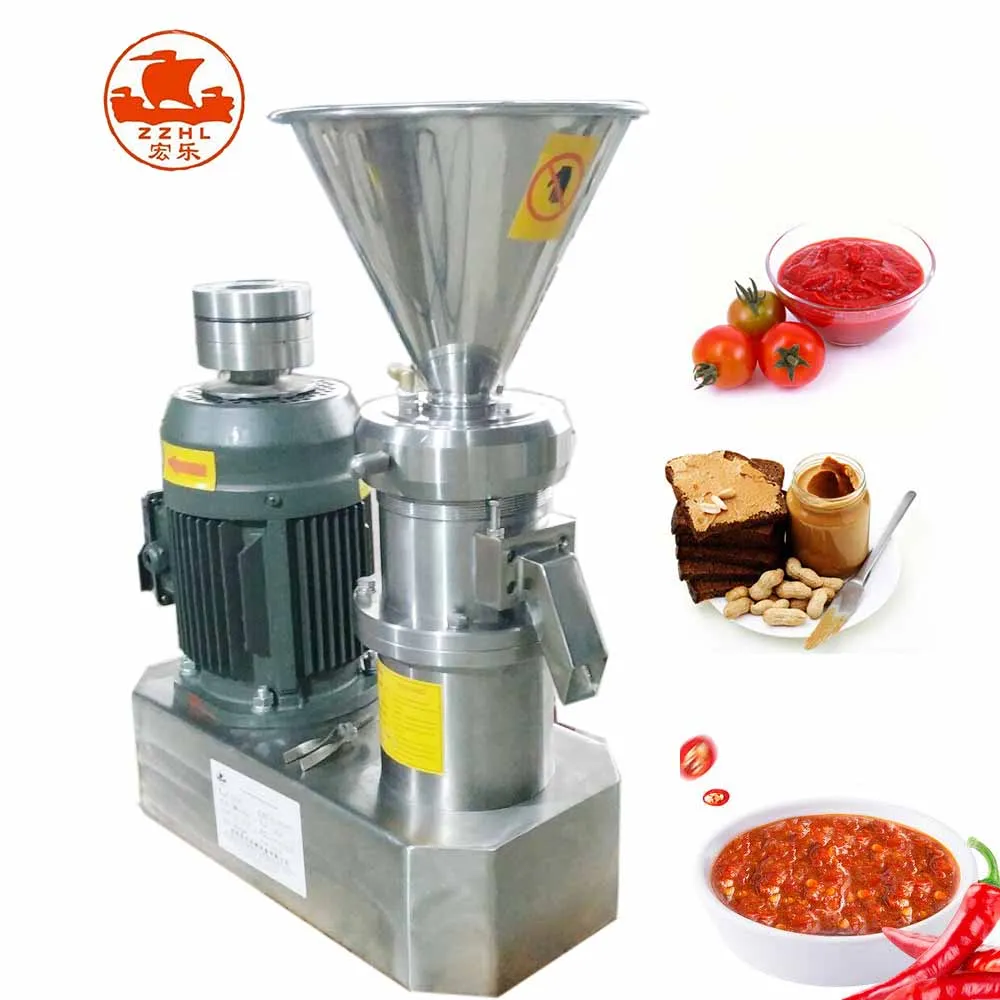

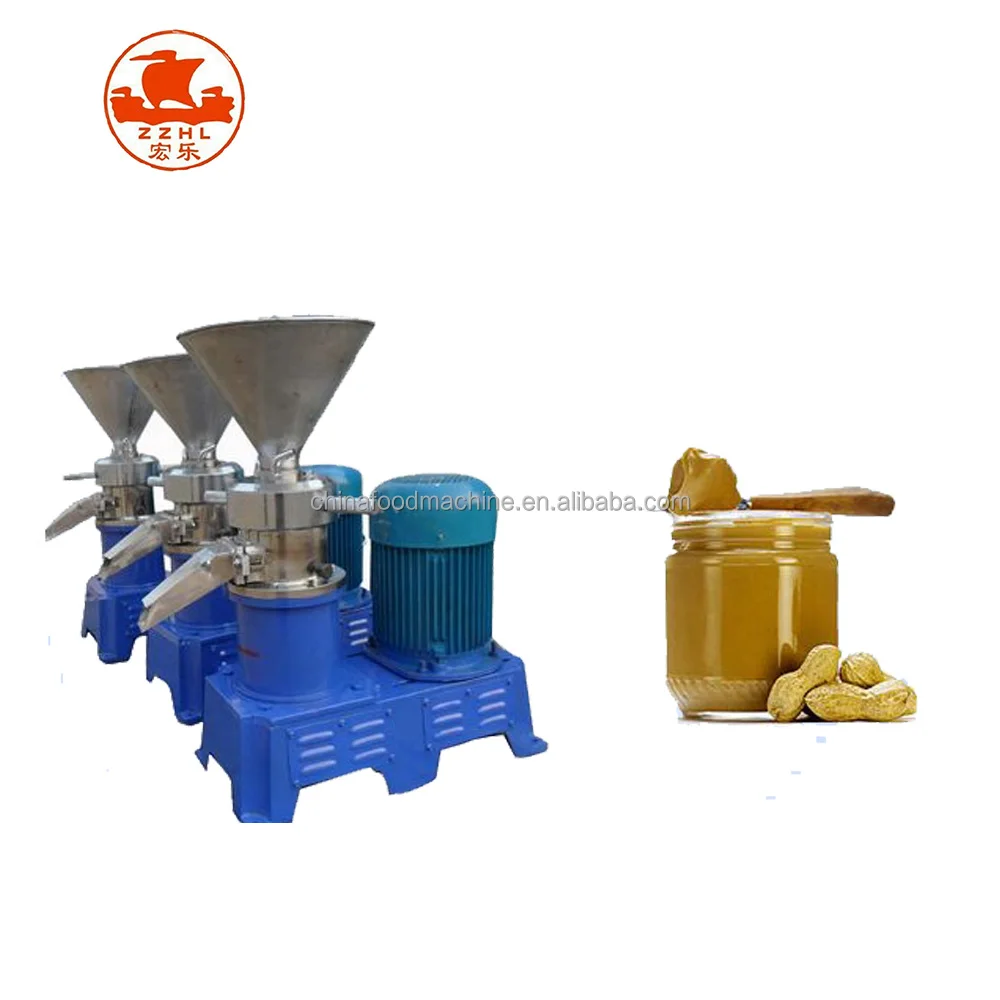

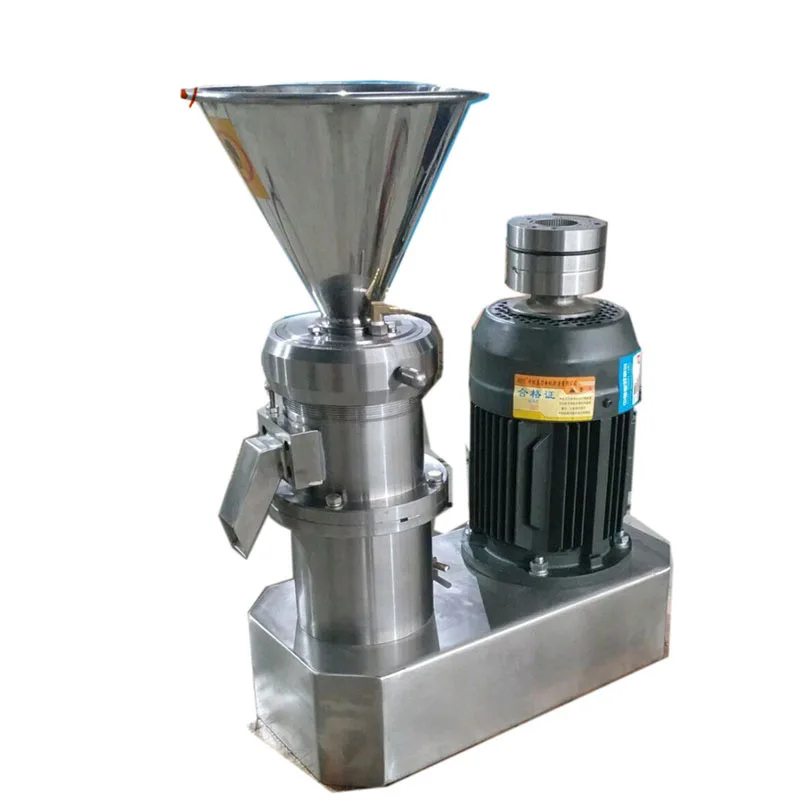

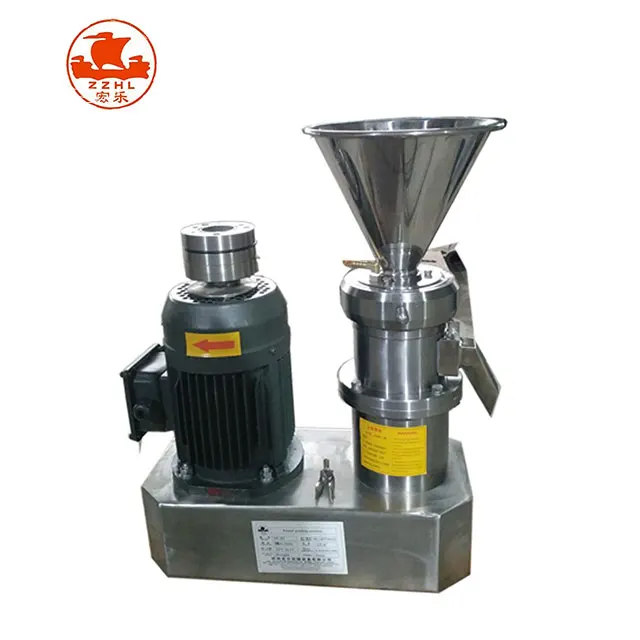

Nut Shea Cocoa Butter Making Machine Press Milk Grinding Fruit Jam Tomato Paste Peanut Butter Making Machine
Product Description
I. OVERVIEW
Colloid mill products are machines for the fine processing of fluid materials. It combines a variety of mechanical, such as homogenizer, ball mill, three-roll machine, shearing machine, mixer and other functions, with superior effects such as ultrafine grinding, dispersing emulsification, homogenization and mixing. Material processing, the particle size of 2 to 50 microns, the degree of homogeneity of more than 90%, is the ideal ultra-particle processing equipment.
This machine is suitable for ultrafine grinding of wet materials in pharmaceutical, foodstuff, chemical and other industries. It can crush, emulsify, homogenize and mix all kinds of semi-wetted and emulsified materials. The main technical indexes have reached
the same kind of foreign products Advanced level.
MAIN TECHNICAL PARAMETER
Colloid mill products are machines for the fine processing of fluid materials. It combines a variety of mechanical, such as homogenizer, ball mill, three-roll machine, shearing machine, mixer and other functions, with superior effects such as ultrafine grinding, dispersing emulsification, homogenization and mixing. Material processing, the particle size of 2 to 50 microns, the degree of homogeneity of more than 90%, is the ideal ultra-particle processing equipment.
This machine is suitable for ultrafine grinding of wet materials in pharmaceutical, foodstuff, chemical and other industries. It can crush, emulsify, homogenize and mix all kinds of semi-wetted and emulsified materials. The main technical indexes have reached
the same kind of foreign products Advanced level.
MAIN TECHNICAL PARAMETER
Model |
HLMJ-50 |
HLMJ-80 |
HLMJ-110 |
HLMJ-130 |
HLMJ-180 |
HLMJ-240 |
HLMJ-300 |
Processing fineness (μm) |
50-100 |
50-100 |
100-200 |
100-200 |
100-200 |
100-200 |
60-200 |
capacity(kg/h) |
10-50 |
30-70 |
150-200 |
300-500 |
800-1000 |
1500-2000 |
3000-4000 |
Power (kw) |
1.1(380V)/1.5(220V) |
4(380V)/(220V) |
7.5 |
15 |
22 |
45 |
75 |
Weight (kg) |
50 |
150 |
175 |
285 |
340 |
1300 |
1600 |
Machine size（mm） |
530*260*580 |
640*410*900 |
700*430*980 |
830*440*1100 |
830*490*1100 |
1320*600*1280 |
1500*800*1120 |
Diameter of hopper lower mouth |
mm |
40 |
50 |
50 |
90 |
90 |
120 |
Hopper volume |
L |
3 |
8 |
8 |
10 |
10 |
20 |
THE SCOPE OF APPLICATION

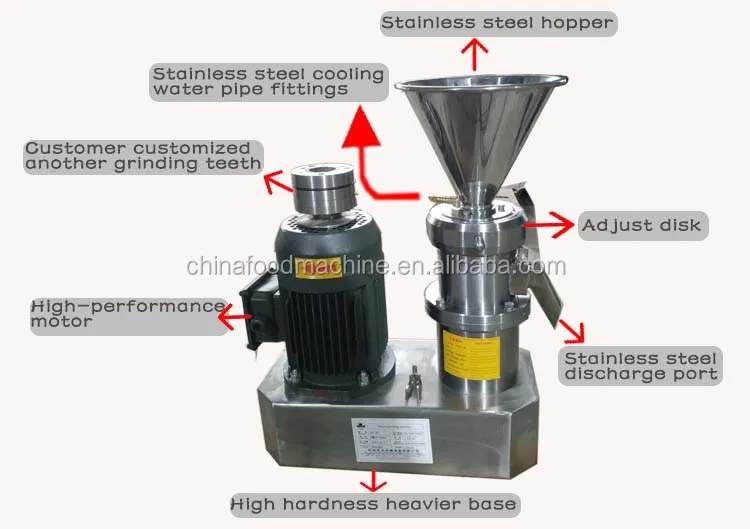

THE STRUCTURAL CHARACTERISTICS
THE STRUCTURAL CHARACTERISTICS

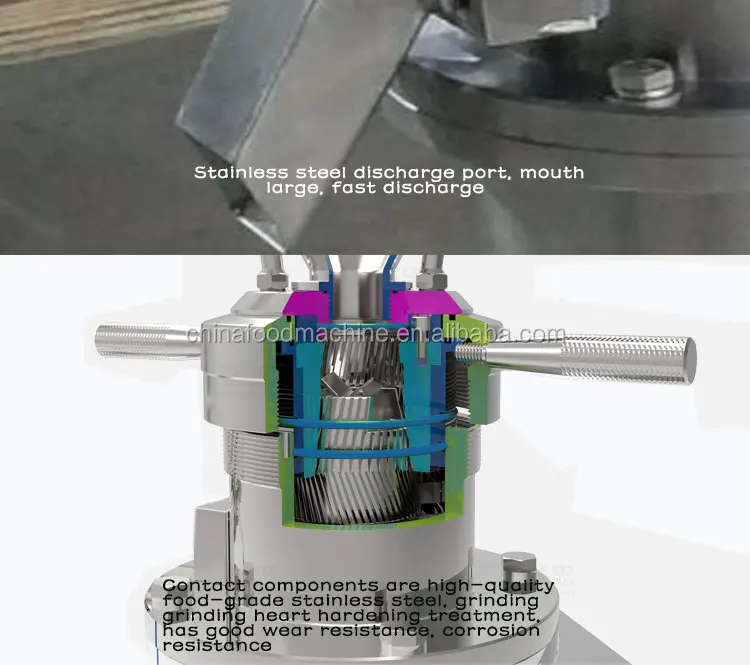

1. The main components of high quality stainless steel, corrosion-resistant, non-toxic.
2. The main components of work, rotor, using special machining and heat treatment process, high precision, long service life.
3. Set, the rotor can choose different materials, with different structures such as grinding and cutting and tooth pattern, the
user can choose according to need, wide applicability.
4. Processing gap through the adjustment ring for trace adjustment, easy to control, to ensure the quality of the product processing.
5. The main seat, adjusting ring with limit and locking device to ensure the stability of the processing gap.
6. Equipped with cooling system to ensure the nature of processed materials.
7. Product design a general access to materials, pipe material and cycle processing and other structures, to maximize the user's requirements.
8. Users can choose according to the needs of ordinary motor or explosion-proof motor.
9. Machine design a variety of packaging forms, available to users.
10. Spindle and motor split design, the user can choose the appropriate speed.
11. Standard motor.(Colloid mill products with reasonable structure, stable performance, easy operation, easy maintenance and so on.)
1. The main components of high quality stainless steel, corrosion-resistant, non-toxic.
2. The main components of work, rotor, using special machining and heat treatment process, high precision, long service life.
3. Set, the rotor can choose different materials, with different structures such as grinding and cutting and tooth pattern, the
user can choose according to need, wide applicability.
4. Processing gap through the adjustment ring for trace adjustment, easy to control, to ensure the quality of the product processing.
5. The main seat, adjusting ring with limit and locking device to ensure the stability of the processing gap.
6. Equipped with cooling system to ensure the nature of processed materials.
7. Product design a general access to materials, pipe material and cycle processing and other structures, to maximize the user's requirements.
8. Users can choose according to the needs of ordinary motor or explosion-proof motor.
9. Machine design a variety of packaging forms, available to users.
10. Spindle and motor split design, the user can choose the appropriate speed.
11. Standard motor.(Colloid mill products with reasonable structure, stable performance, easy operation, easy maintenance and so on.)
Product scope of application
Fruit ,vegetable ,nut, birds bone,livestock bone etc

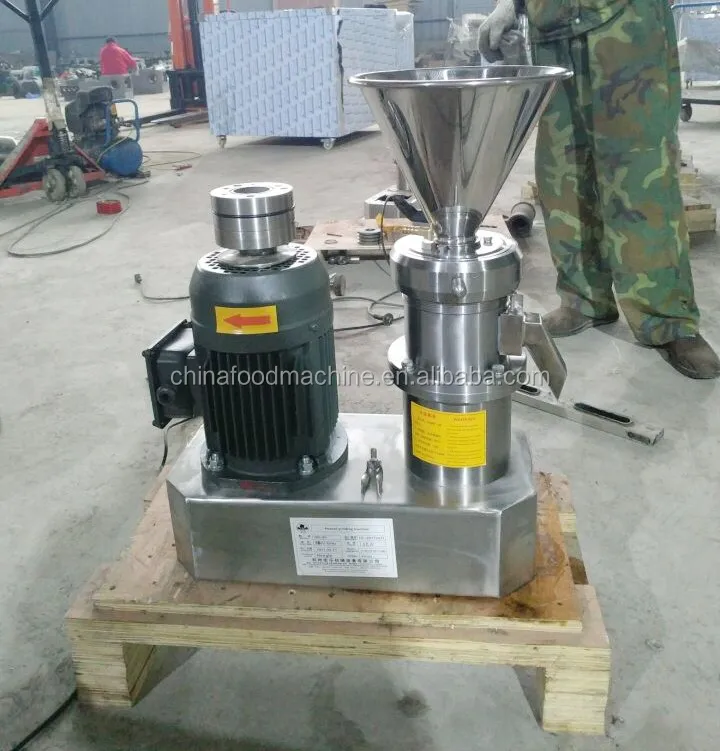

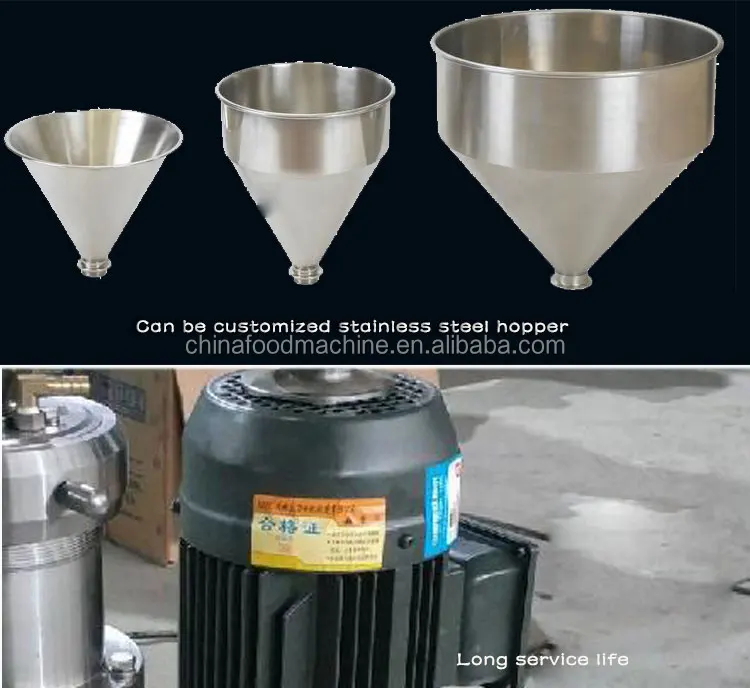

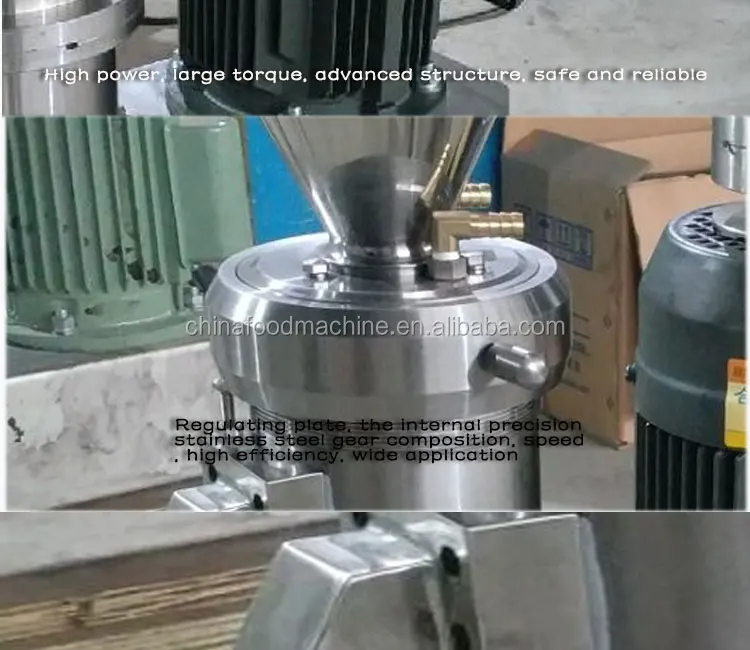

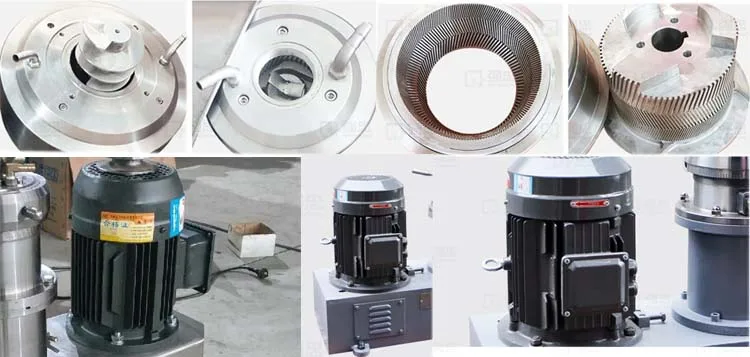

Detailed Images
Related Products
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
