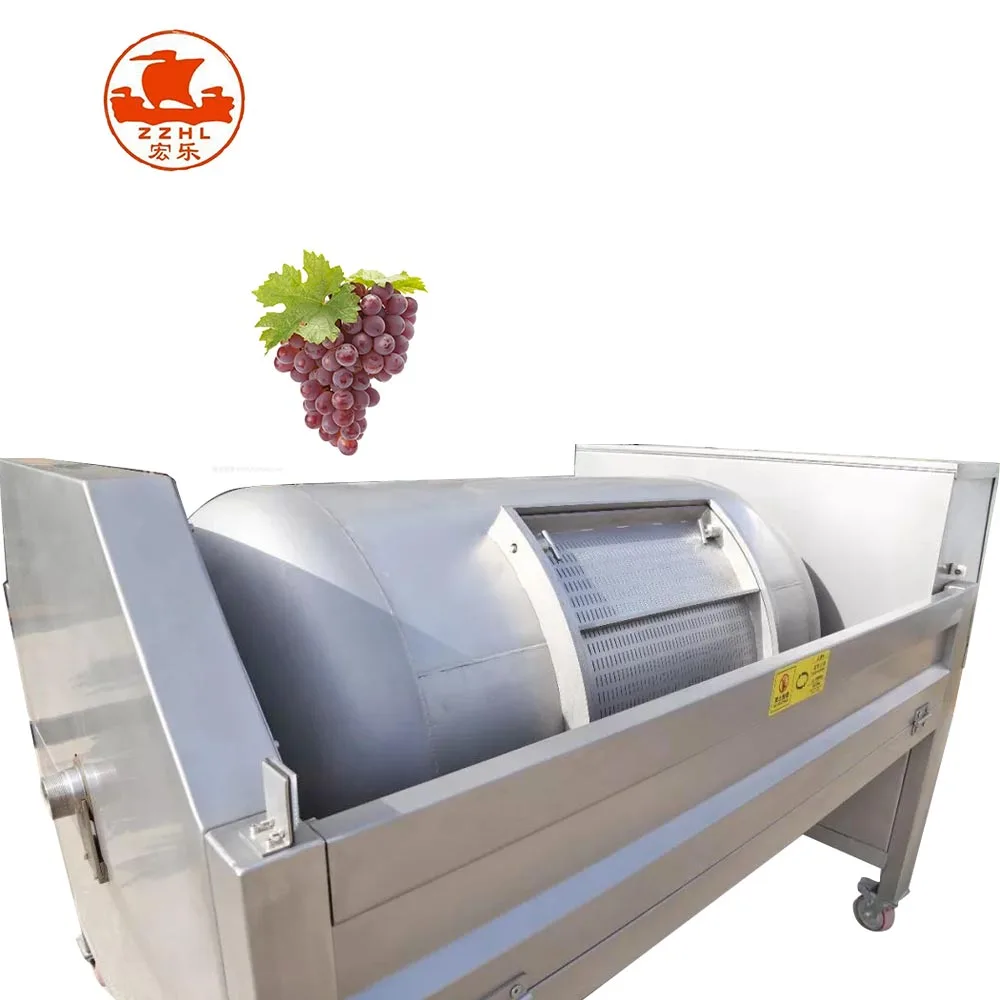

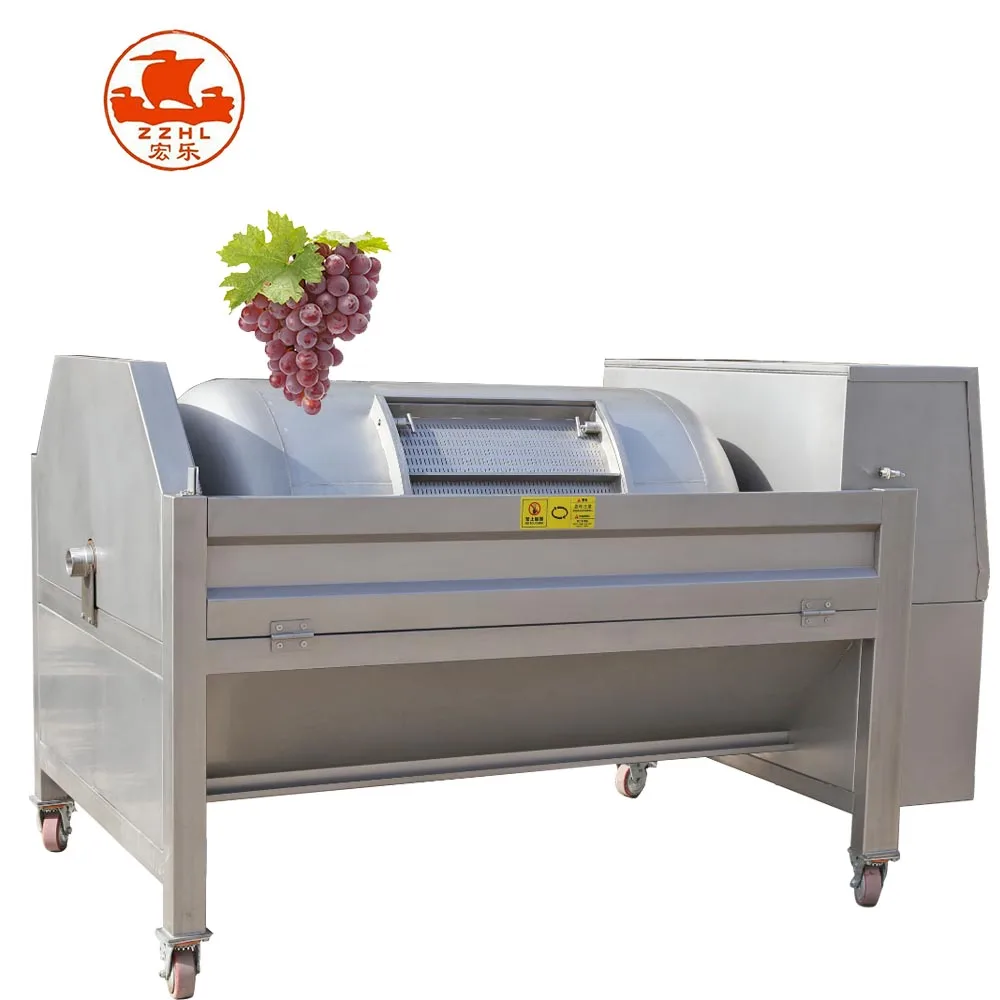

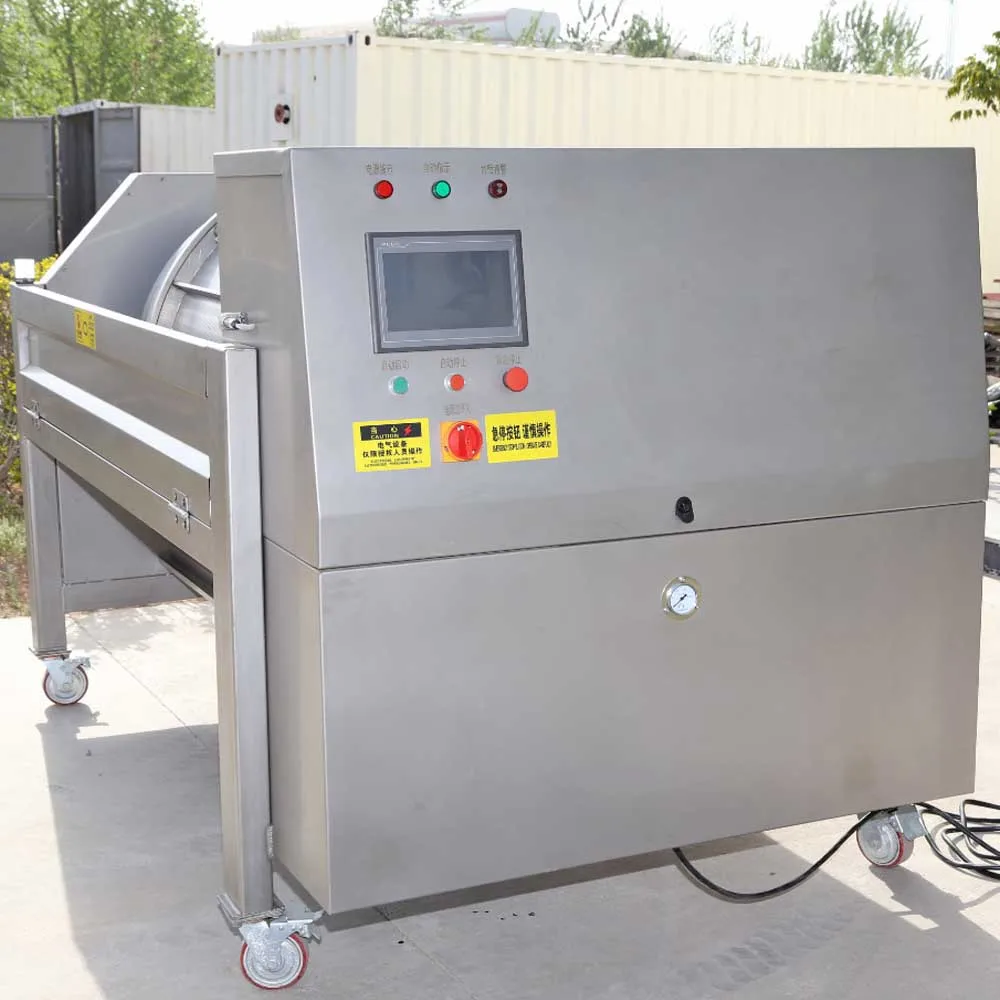

Pneumatic Fruit Grape Press With Closed Tank Winery Equipment Machine
Product Description
2m³ airbag press configuration:
1. Party B's product design bilingual operation mode (Chinese, English)
2. A waterproof cover is added to the operation panel, suitable for outdoor use
3. Voltage: three-phase 240v; (can be customized)
4. Axial feed DN100; (optional)
5. PLC control, preset 2 standard programs, touch screen can realize the setting of any pressing cycle program;(Multiple standard programs can be customized)
6. The main body and pipes of the equipment are all made of SUS304 stainless steel;
7. Equipped with casters, flexible movement, the length of the power cord is 20 meters;

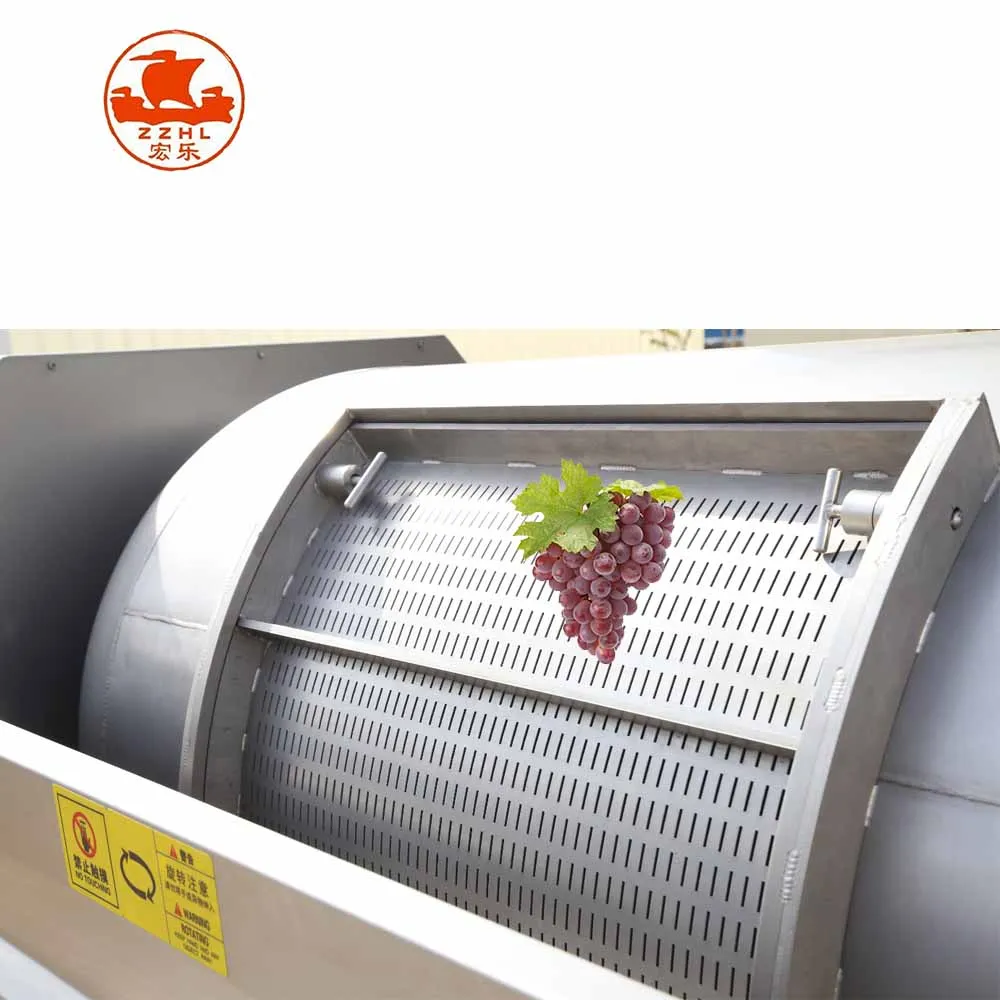

8. The inside of the pressing chamber is equipped with three juice separation screen grooves, which communicate with the external juice collection port;
9. The juice collection port is equipped with a threaded connection plug, which can be easily connected to the pipeline,effectively increasing the pressing separation area and improving the separation effect;
10. The collection tank is 300L, and the DN50 interface is installed; (can be customized)
11. Infrared induction safety protection.
12. The area of the juice outlet hole of the pressing chamber can be customized, and the size of the feeding door can be customized..
1. Party B's product design bilingual operation mode (Chinese, English)
2. A waterproof cover is added to the operation panel, suitable for outdoor use
3. Voltage: three-phase 240v; (can be customized)
4. Axial feed DN100; (optional)
5. PLC control, preset 2 standard programs, touch screen can realize the setting of any pressing cycle program;(Multiple standard programs can be customized)
6. The main body and pipes of the equipment are all made of SUS304 stainless steel;
7. Equipped with casters, flexible movement, the length of the power cord is 20 meters;
8. The inside of the pressing chamber is equipped with three juice separation screen grooves, which communicate with the external juice collection port;
9. The juice collection port is equipped with a threaded connection plug, which can be easily connected to the pipeline,effectively increasing the pressing separation area and improving the separation effect;
10. The collection tank is 300L, and the DN50 interface is installed; (can be customized)
11. Infrared induction safety protection.
12. The area of the juice outlet hole of the pressing chamber can be customized, and the size of the feeding door can be customized..
Model |
HLQNYZ |
Tank volume |
2.1m³ |
Machine size |
2915*1600*2078mm |
Power |
5.5kw |
Feed door (L*W) |
700*480mm |

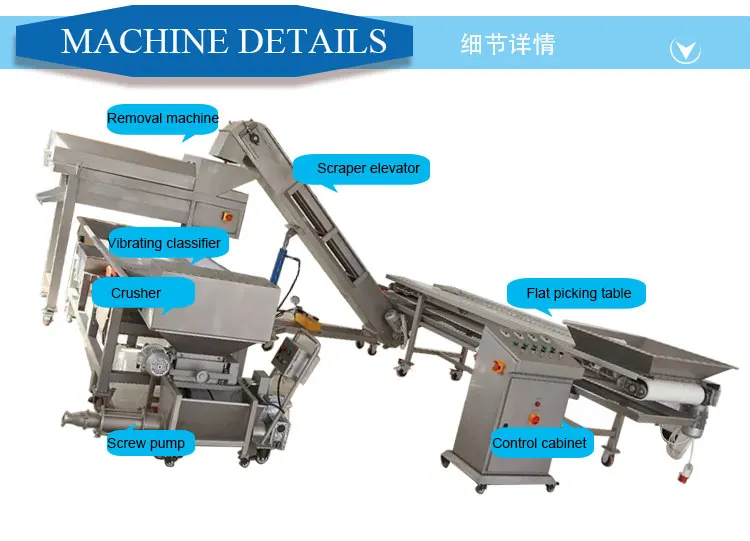

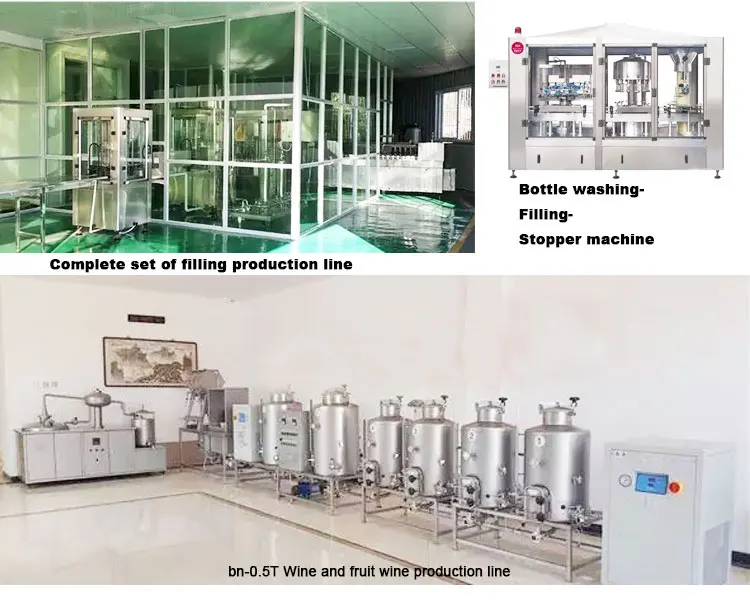

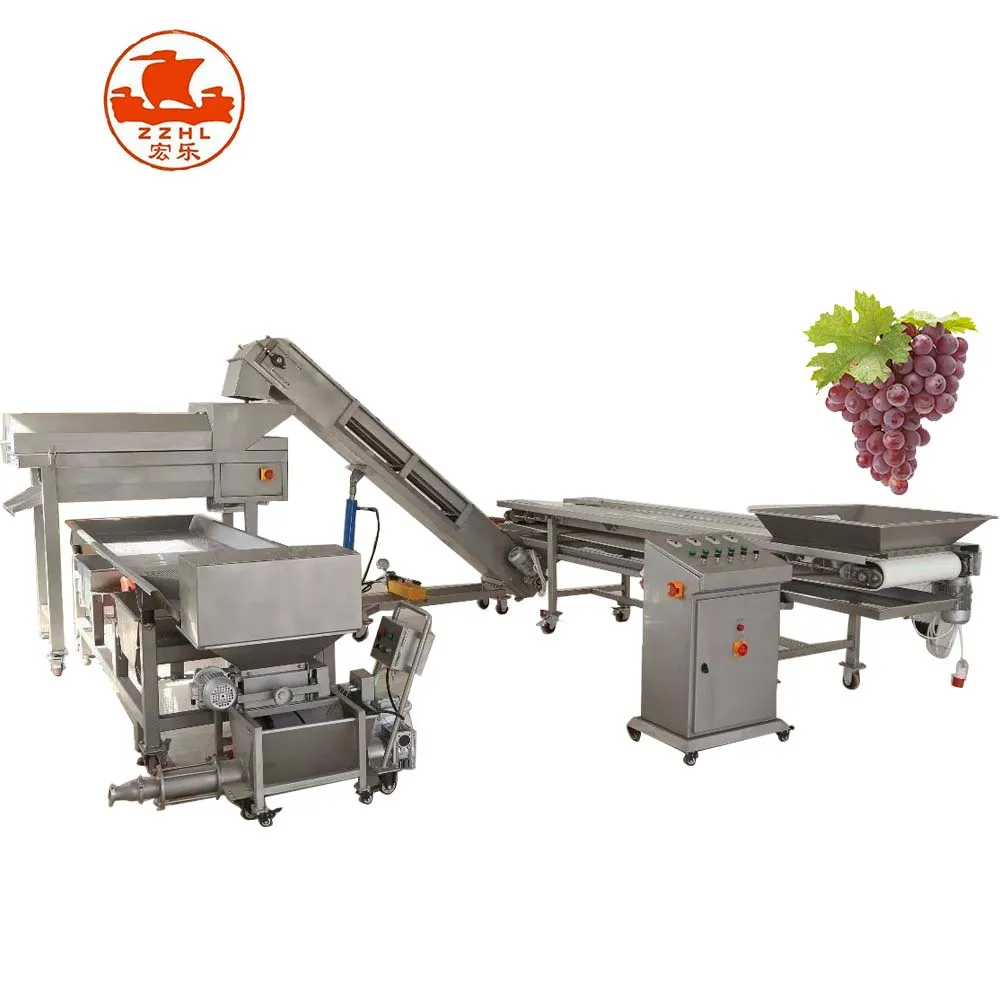

The complete set of brewing equipment:

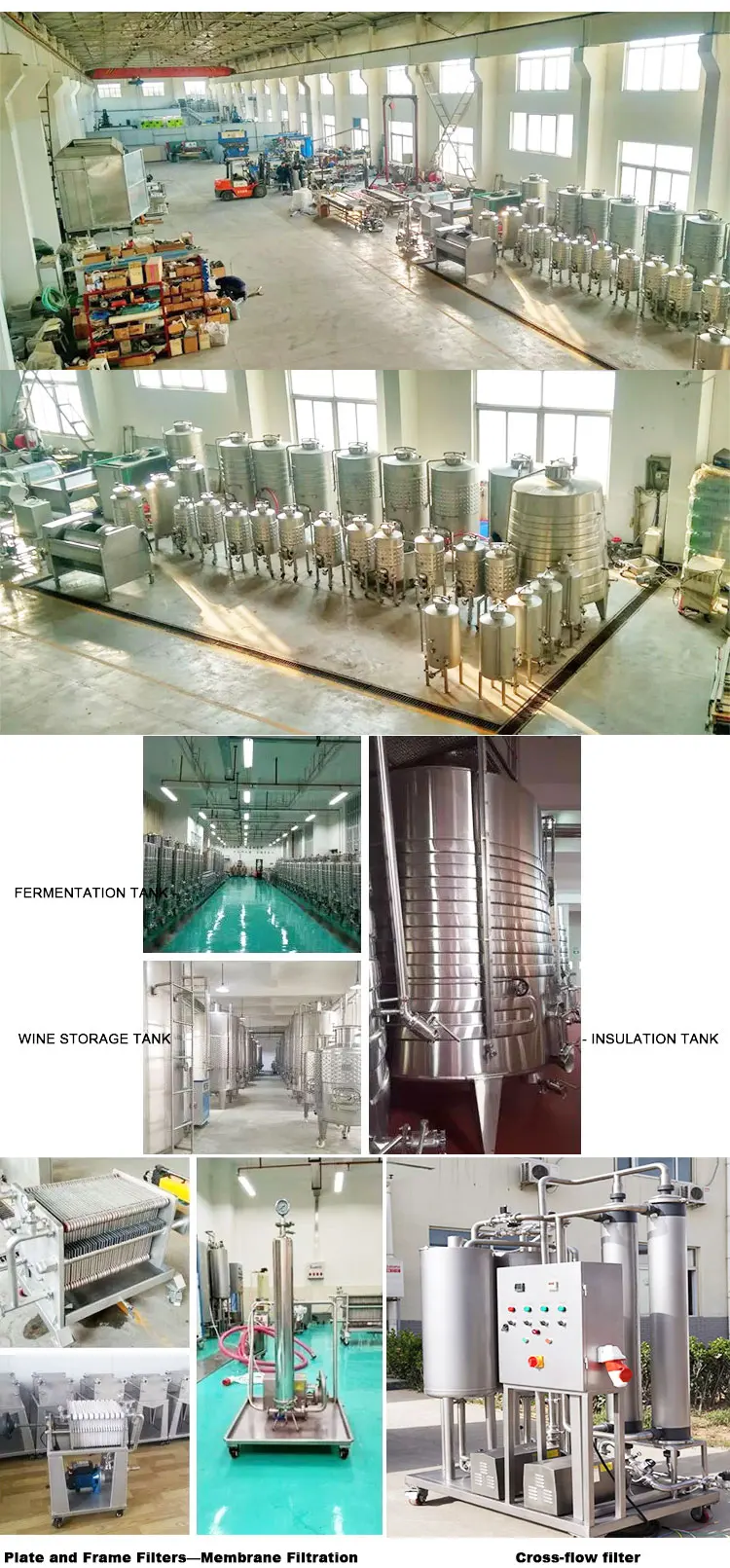

The complete set of brewing equipment includes production equipment involved in all processes such as fruit pretreatment,fermentation and wine storage, pressing, filtration, freezing, filling and packaging.
Related Products
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
