Restaurant Stainless Steel Commercial Meat Grinder
Product Description
Use and scope of application:
Can grinder the frozen meat below 18 ℃, does not damage the muscle fiber structure.
With the German technology, has the most excellent performance, the #304 stainless steel.
Charging mouth twisted axis process is reasonable; the mouth is big, feeding into the material flow, high production efficiency.
With the charging auger and the discharging auger, each auger to work alone, and there are two speed, can according to different
raw materials with different speed ratio, so as to achieve the best effect and production.
The discharging auger wring pitch reasonable design, make raw meat through flow, put an end to the oil phenomenon, and reduce the
auger from the adversary extruding, make meat particle degree good, clear edge, temperature is low.
Have the security protection device, operating more security. With a sudden stop button.
Because without thawed, so keep the nutrition and the meat fresh.
Can grinder the frozen meat below 18 ℃, does not damage the muscle fiber structure.
With the German technology, has the most excellent performance, the #304 stainless steel.
Charging mouth twisted axis process is reasonable; the mouth is big, feeding into the material flow, high production efficiency.
With the charging auger and the discharging auger, each auger to work alone, and there are two speed, can according to different
raw materials with different speed ratio, so as to achieve the best effect and production.
The discharging auger wring pitch reasonable design, make raw meat through flow, put an end to the oil phenomenon, and reduce the
auger from the adversary extruding, make meat particle degree good, clear edge, temperature is low.
Have the security protection device, operating more security. With a sudden stop button.
Because without thawed, so keep the nutrition and the meat fresh.
Parameters:
Model |
voltage（v/kw） |
Capacity (kg/h) |
speed(r/min) |
Machine size (mm) |
Weight (kg) |
HL-JR-100 |
380/5.5 |
500-1000 |
245 |
850*500*860 |
≈200 |
HL-JR-120 |
380/7.5 |
1000-1500 |
245 |
960*550*1080 |
≈280 |
HL-JR-130 |
380/11 |
1500-2000 |
160 |
1320*700*1100 |
≈600 |
HL-JR-160 |
380/14 |
2000-3000 |
170 |
1500*800*1200 |
≈850 |
HL-JR-200 |
380/22 |
3000-4000 |
185 |
1600*850*1400 |
≈1000 |
HL-JR-250 |
380/37 |
4000-5000 |
150 |
1700*1200*1600 |
≈1500 |
HL-JR-300 |
380/45 |
5000-5500 |
47 |
1800*1250*1600 |
≈2000 |
Detailed Images

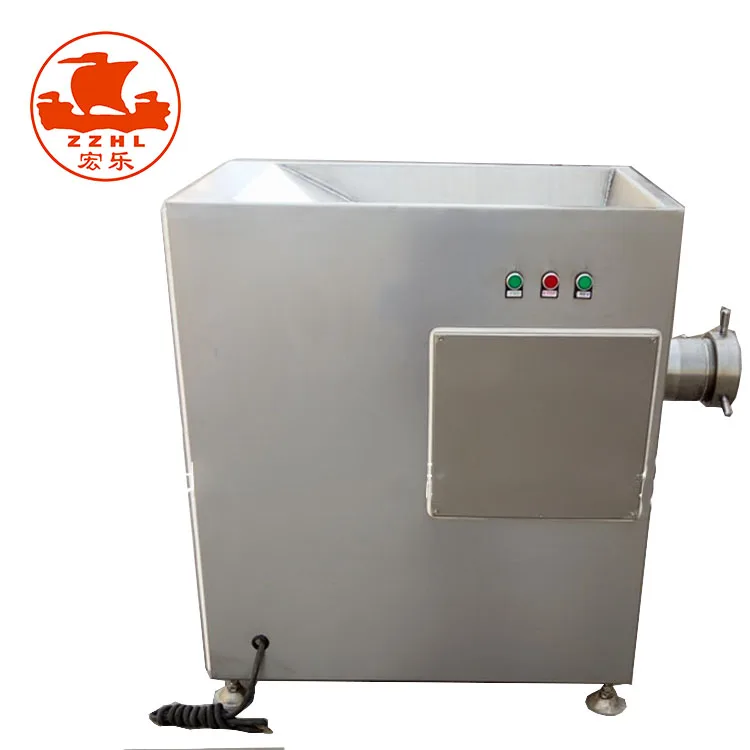

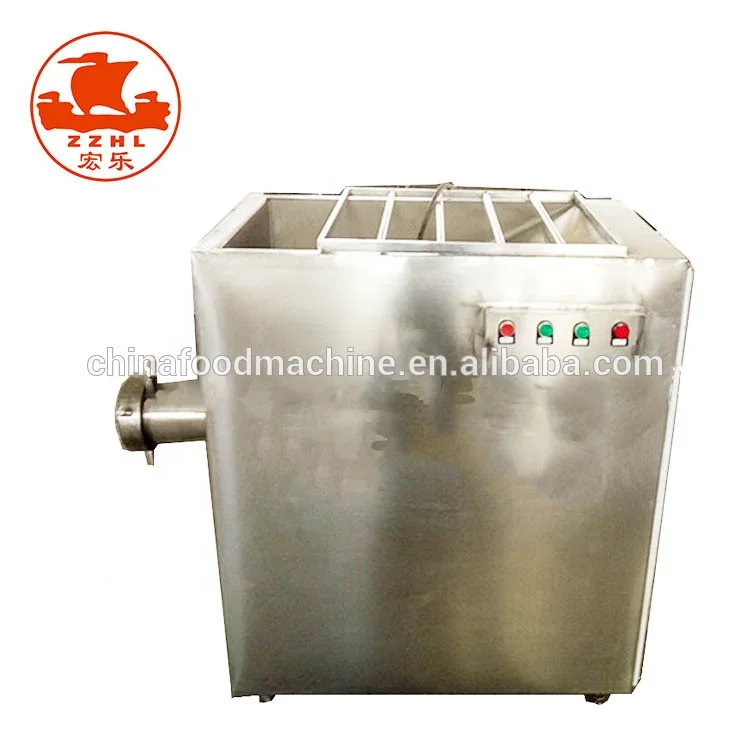

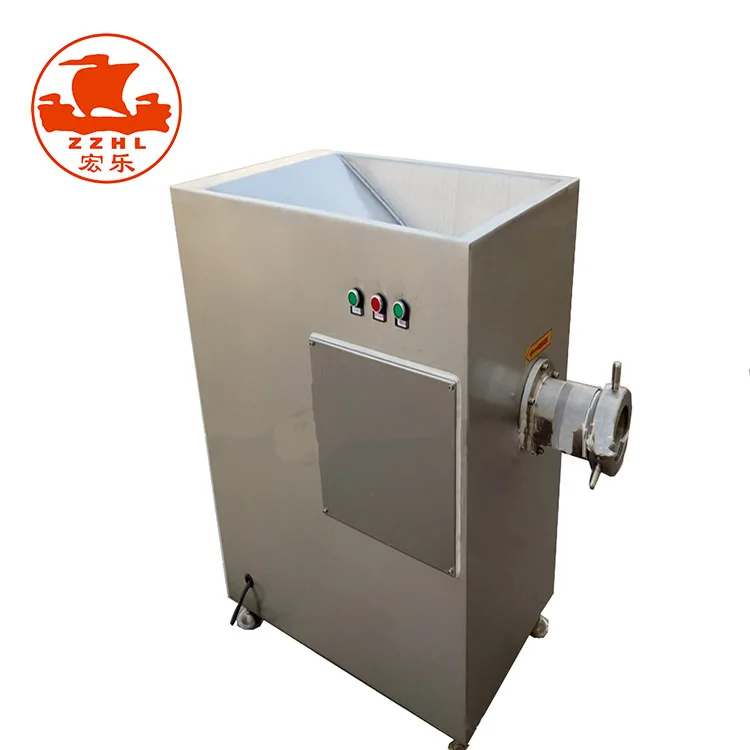

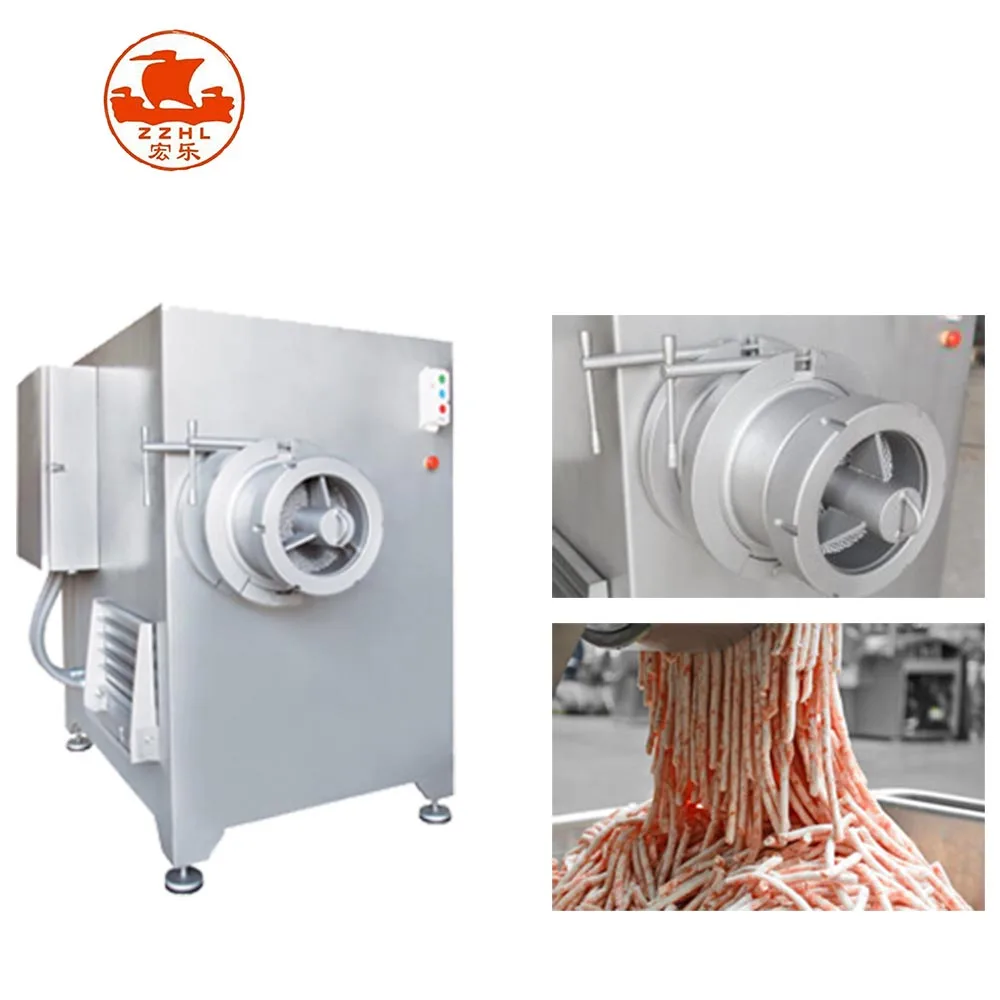

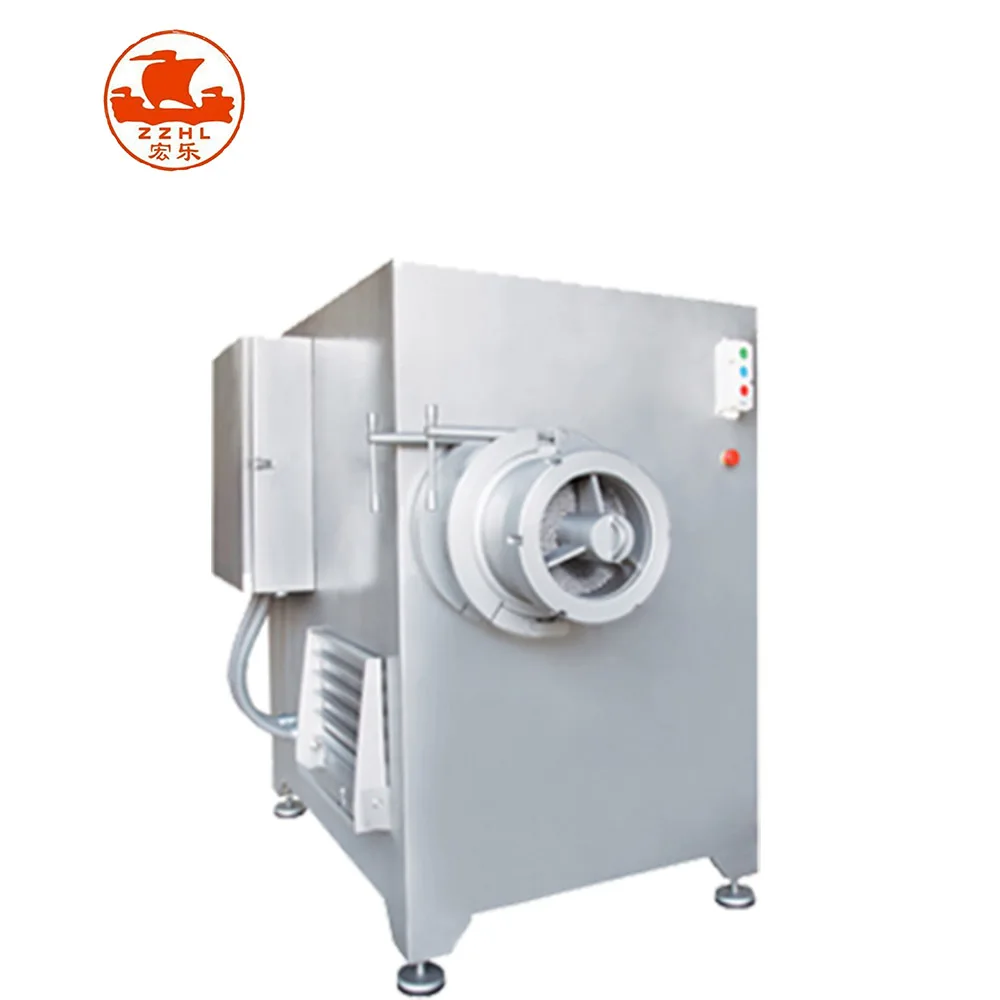

Meat grinder machine
meat grinder machine
Bowl cutter chopper
bowl cutter chopper
Related Products
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
