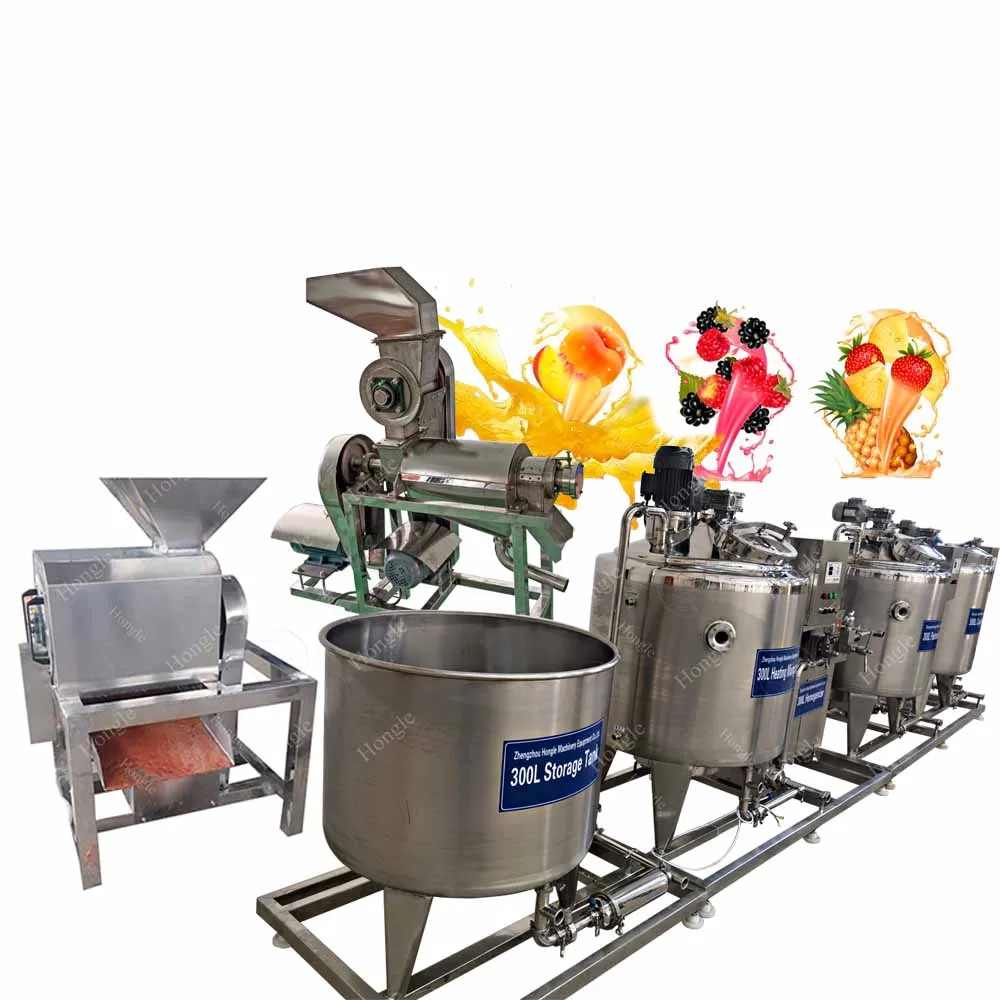

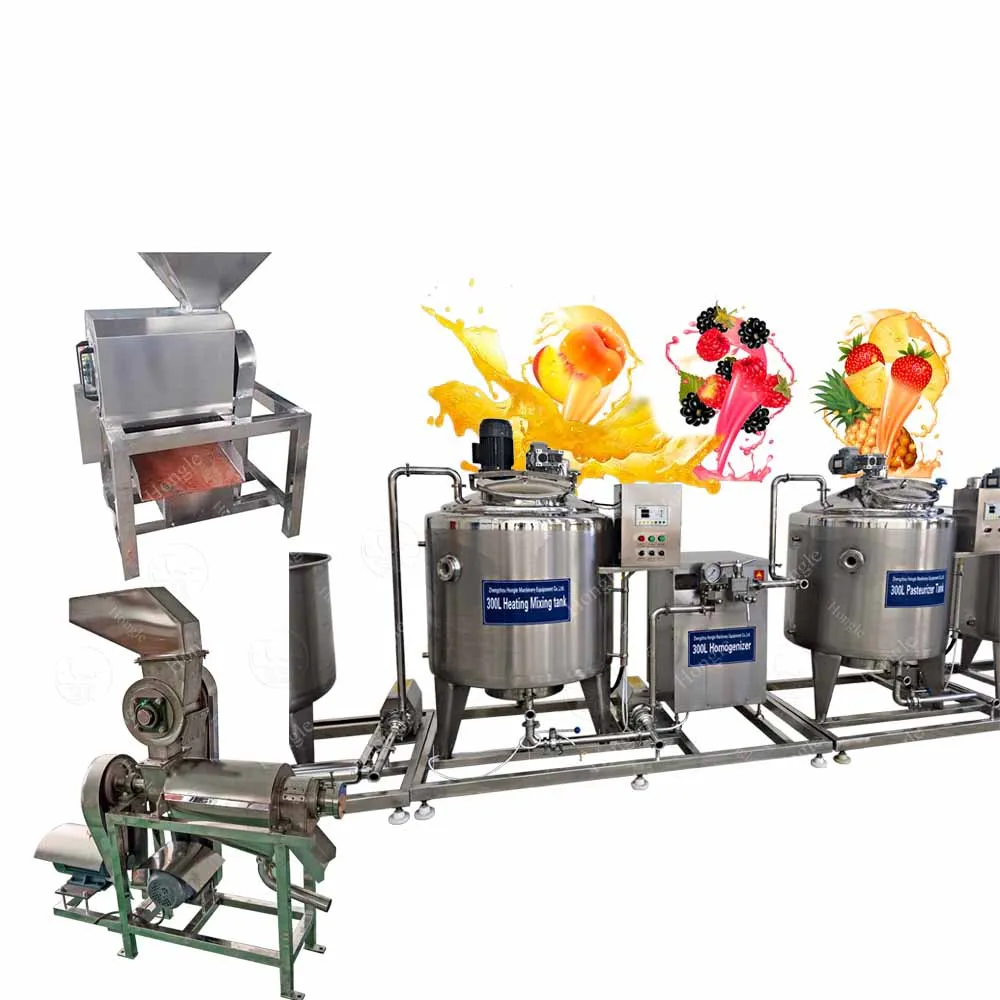

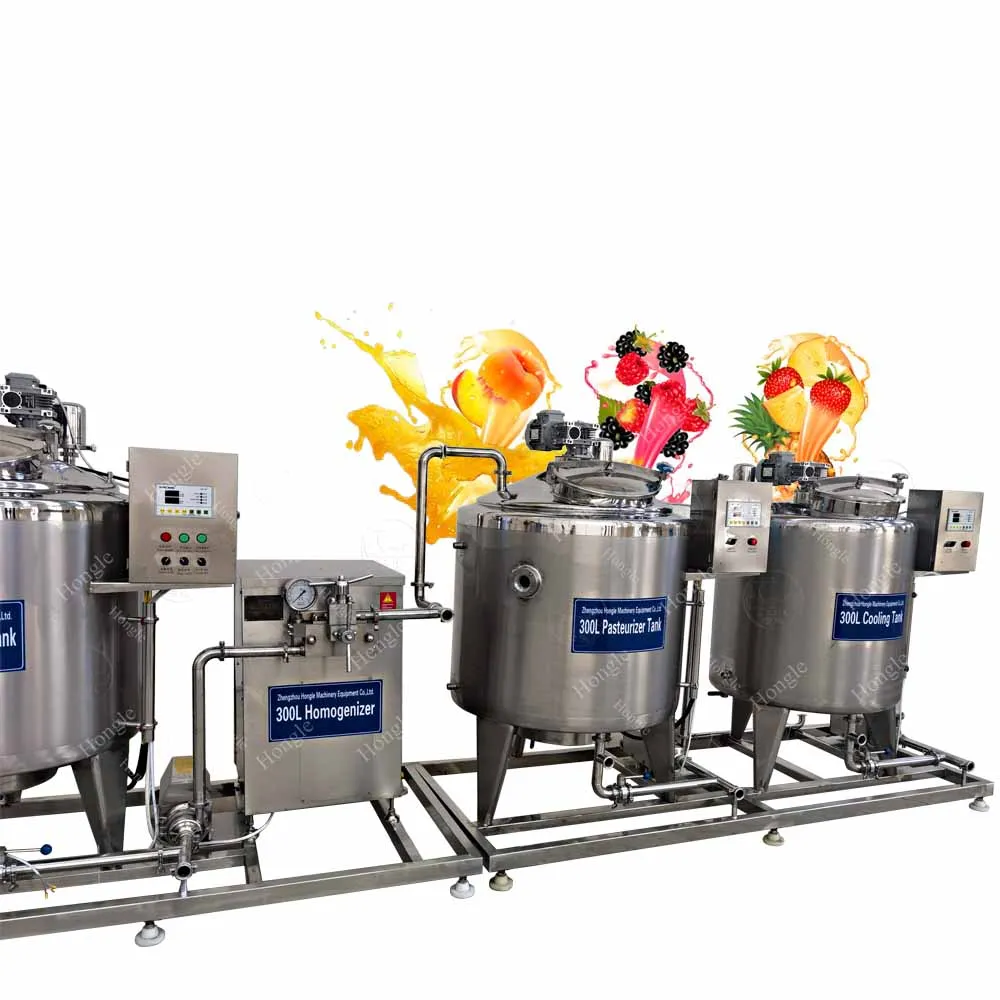

Small Scale Fruit Juice Production Line with Sterilization and Packaging
Fully automated juice production lines can be customized to meet specific needs.
- Overview
- Recommended Products
Fresh Fruit Orange Mango Juice Bottling Production Machine
Product Description
Use and scope of application:
1.Used for pressing pineapple, apple, pear and other fruits;
2.It is used for pressing mulberries, grapes, oranges, oranges and other berries.
3.It is used for pressing tomatoes, ginger, garlic, celery and other vegetables.
4.Screw push extrusion;
5.Fully automatic juicing and slag removal of berries, kernels and vegetables;
6.The contact part with materials is made of national standard 304 stainless steel.
7.The rack material can be made of national standard 304 stainless steel.

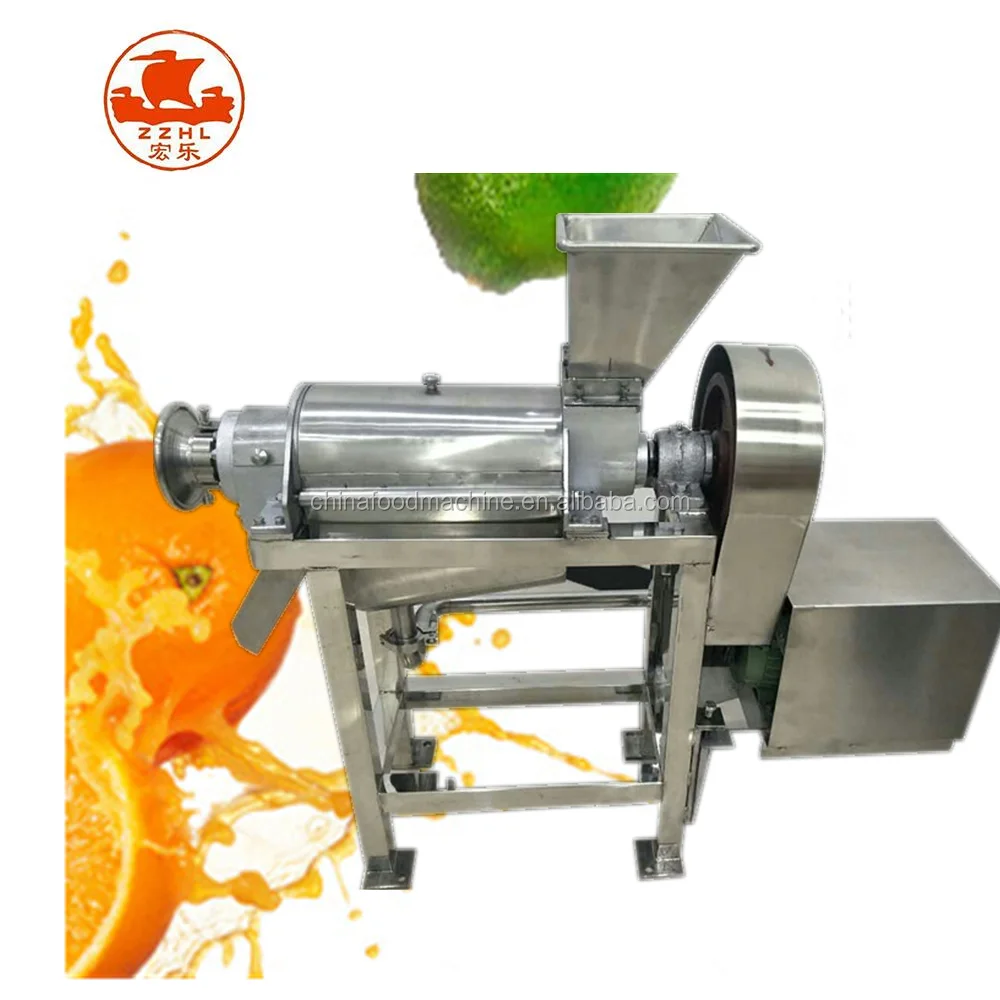

Equipment structure and working principle:
1. Structure:
The screw spindle is composed of front support, feed hopper, crushing, screw, filter screen, juicer, rear support and slag
discharge groove. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat. The motor drives the screw through a pair of triangular belt pulleys.
2. Working principle:
The main component of the equipment is that the bottom diameter of the screw increases gradually along the direction of the slagoutlet, while the pitch decreases gradually. When the material is propelled by the screw, the screw cavity shrinks, resulting inthe squeezing of the material.
The slag yield can be changed, but if the void is too small, under the strong extrusion, some slag particles will be extruded
through the filter together with the juice. Although the juice yield increases, the quality of the juice decreases relatively. The
void size should be determined by the specific process requirements of users.
Stainless steel spiral fruit and vegetable juicer is suitable for beating and separating fresh fruits and vegetables. Products
such as orange, grape, kiwifruit, mulberry, bayberry, peach (pitted) can be made into jam juice, which can separate the pit, seedand thin skin of fruit. Vegetable juice can also be made from green vegetables (cut off) tomato, pepper, celery (cut off).
Vegetable tendons can be separated. It is an ideal machine for making jam, fruit juice and vegetable juice. It is an importantequipment for food processing enterprises. 。
1.Used for pressing pineapple, apple, pear and other fruits;
2.It is used for pressing mulberries, grapes, oranges, oranges and other berries.
3.It is used for pressing tomatoes, ginger, garlic, celery and other vegetables.
4.Screw push extrusion;
5.Fully automatic juicing and slag removal of berries, kernels and vegetables;
6.The contact part with materials is made of national standard 304 stainless steel.
7.The rack material can be made of national standard 304 stainless steel.
Equipment structure and working principle:
1. Structure:
The screw spindle is composed of front support, feed hopper, crushing, screw, filter screen, juicer, rear support and slag
discharge groove. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat. The motor drives the screw through a pair of triangular belt pulleys.
2. Working principle:
The main component of the equipment is that the bottom diameter of the screw increases gradually along the direction of the slagoutlet, while the pitch decreases gradually. When the material is propelled by the screw, the screw cavity shrinks, resulting inthe squeezing of the material.
The slag yield can be changed, but if the void is too small, under the strong extrusion, some slag particles will be extruded
through the filter together with the juice. Although the juice yield increases, the quality of the juice decreases relatively. The
void size should be determined by the specific process requirements of users.
Stainless steel spiral fruit and vegetable juicer is suitable for beating and separating fresh fruits and vegetables. Products
such as orange, grape, kiwifruit, mulberry, bayberry, peach (pitted) can be made into jam juice, which can separate the pit, seedand thin skin of fruit. Vegetable juice can also be made from green vegetables (cut off) tomato, pepper, celery (cut off).
Vegetable tendons can be separated. It is an ideal machine for making jam, fruit juice and vegetable juice. It is an importantequipment for food processing enterprises. 。
fruits and vegetable Stainless Steel Spiral Screw Cold Press Juicer/ extractor juice machine Parameters
Model |
HL-ZZ0.5 |
HL-ZZ1 |
HL-ZZ1.5 |
HL-ZZ2.5 |
Capacity |
0.1-0.5t |
1t/h |
1.5t/h |
2.5t/H |
Screw diameter (mm) |
80mm |
125mm |
175mm |
247MM |
Screw juicer speed(r.p.m) |
380 |
380 |
380 |
380 |
Screen pore size(mm) |
0.6mm |
0.6mm |
0.6mm |
0.6mm |
Power |
1.5kw |
2.5kw |
4kw |
380V/11kw |
Dimension |
700*360*900mm |
950*400*1100mm |
1300*450*1357mm |
2000*700*1850mm |
Detailed Images
Related Products
Juicer with crusher
Juicer with broken, Suitable for larger whole fruits
Multifunction fruits and vegetable extractor with crusher Parameters
Model |
HL-ZZFS0.5 |
HL-ZZFS1 |
HL-ZZFS1.5 |
HL-ZZFS2.5 |
Capacity |
0.1-0.5t |
1t/h |
1.5t/h |
2.5t/H |
Screw diameter (mm) |
80mm |
125mm |
175mm |
247MM |
Screw juicer speed(r.p.m) |
380 |
380 |
380 |
380 |
Screen pore size(mm) |
0.6mm |
0.6mm |
0.6mm |
0.6mm |
Screw juicer motor Power |
1.5kw |
2.5kw |
4kw |
380V/11kw |
Crusher motor Power |
0.7KW |
1.5KW |
1.5KW |
1.5KW |
Dimension |
900*360*1300mm |
950*400*1450mm |
1600*450*1700mm |
2000*700*2100mm |
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
