Chocolate Mill Refiner Chocolate Roll Refiner Chocolate Conch Refiner Machine.
Machine Technical Parame
|

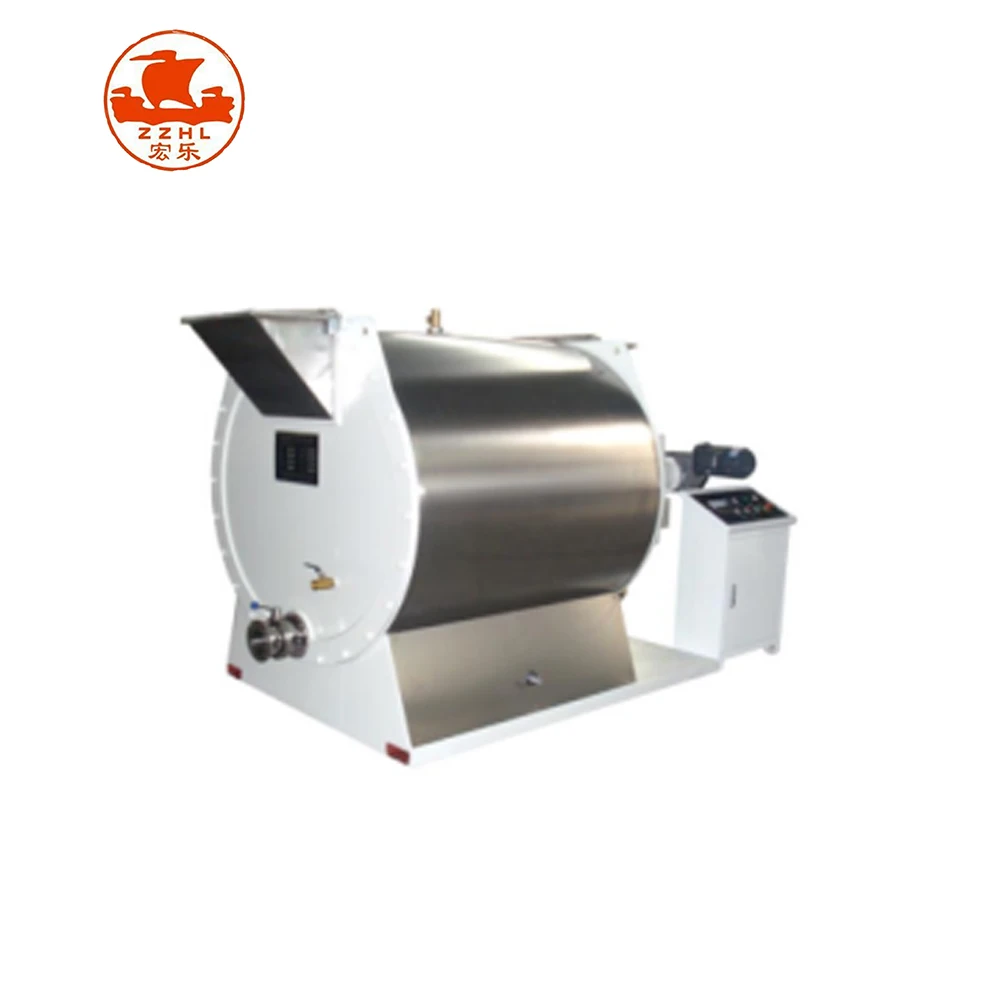

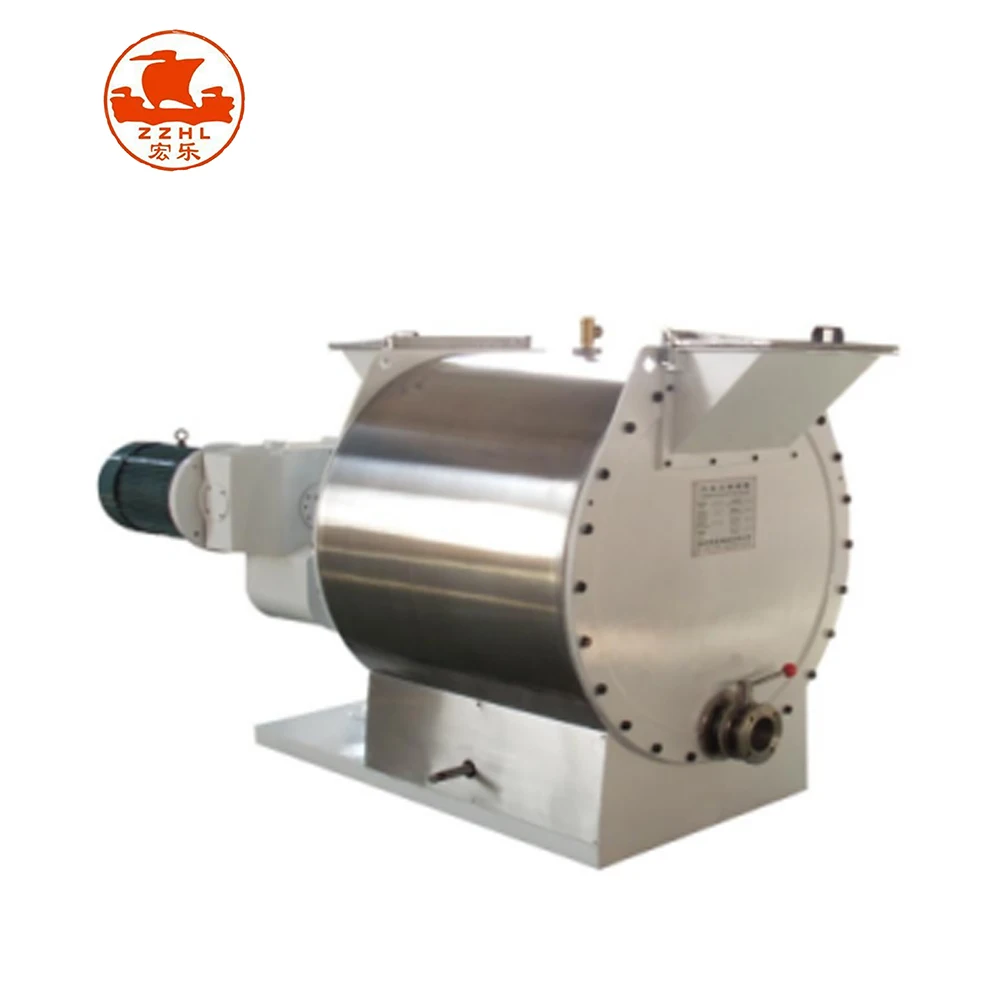

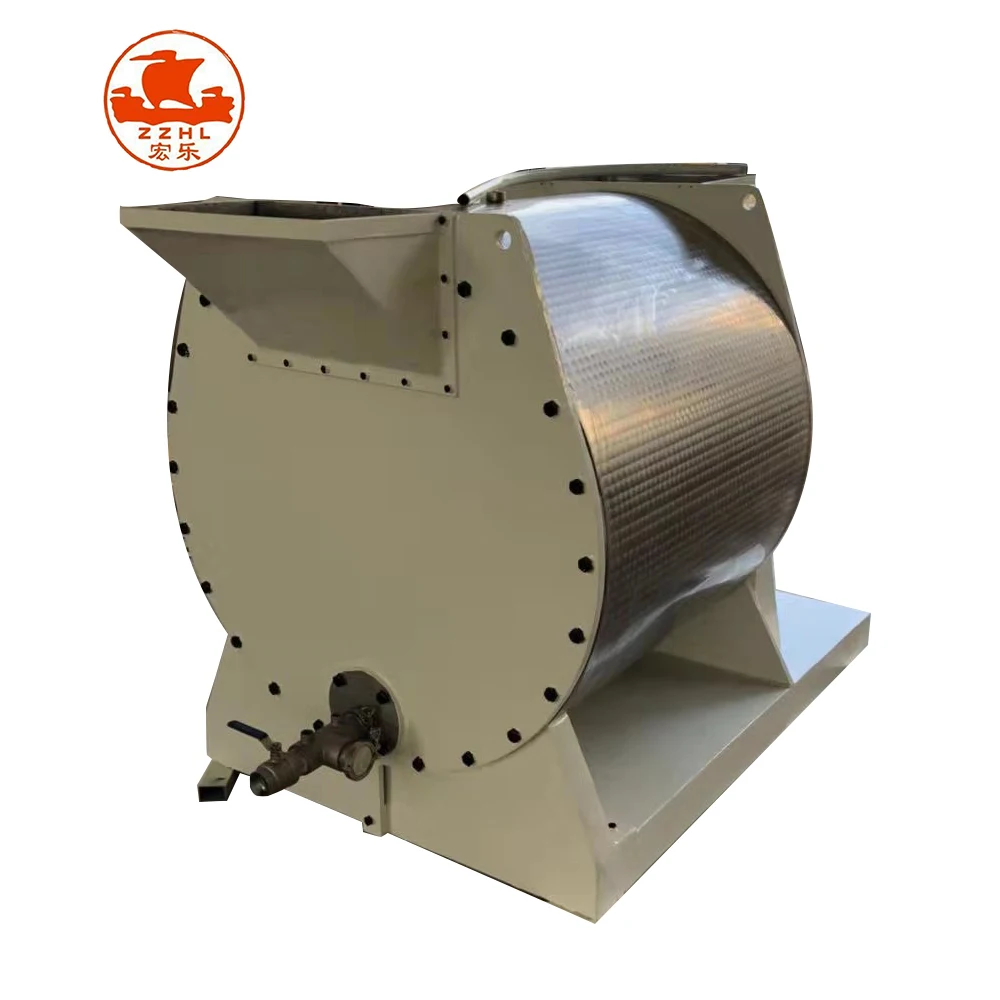

JMJ500 Chocolate Conche and Refiner
|
JMJ1000 Chocolate Conche and Refiner
|
|
|
Capacity
|
500KG
|
1000KG |
|
Duration
|
12-18hours
|
14-20hours |
Fineness |
20-25um |
20-25um |
|
Size
|
2500*1080*1370mm |
2900*1200*1600mm |
|
Main Engine Power
|
15KW(with separate control box)
|
22KW(with separate control box) |
|
Heating Power
|
7.5KW(Electric heating and automatic temperature control)
|
7.5KW(Electric heating and automatic temperature control)
|
|
Electric Blade Tightening Power
|
0.75KW
|
0.75KW |
|
Gear Box
|
Helical gear drive,20 crMnTi.gear with carbonization treatment
|
Helical gear drive,20 crMnTi.gear with carbonization treatment
|
Machine Main Material |
Liners,blades,blades hilt/holder inside the cylinder block are all No.65 manganese steel with heat treatment;outside of cylinder block covered with SUS304;SUS304 outlet valve;Schneider electrical components;Siemens brand motor;Omron temperature controller.
|
Liners,blades,blades hilt/holder inside the cylinder block are all No.65 manganese steel with heat treatment;outside of cylinder block covered with SUS304;SUS304 outlet valve;Schneider electrical components;Siemens brand motor;Omron temperature controller. |
|

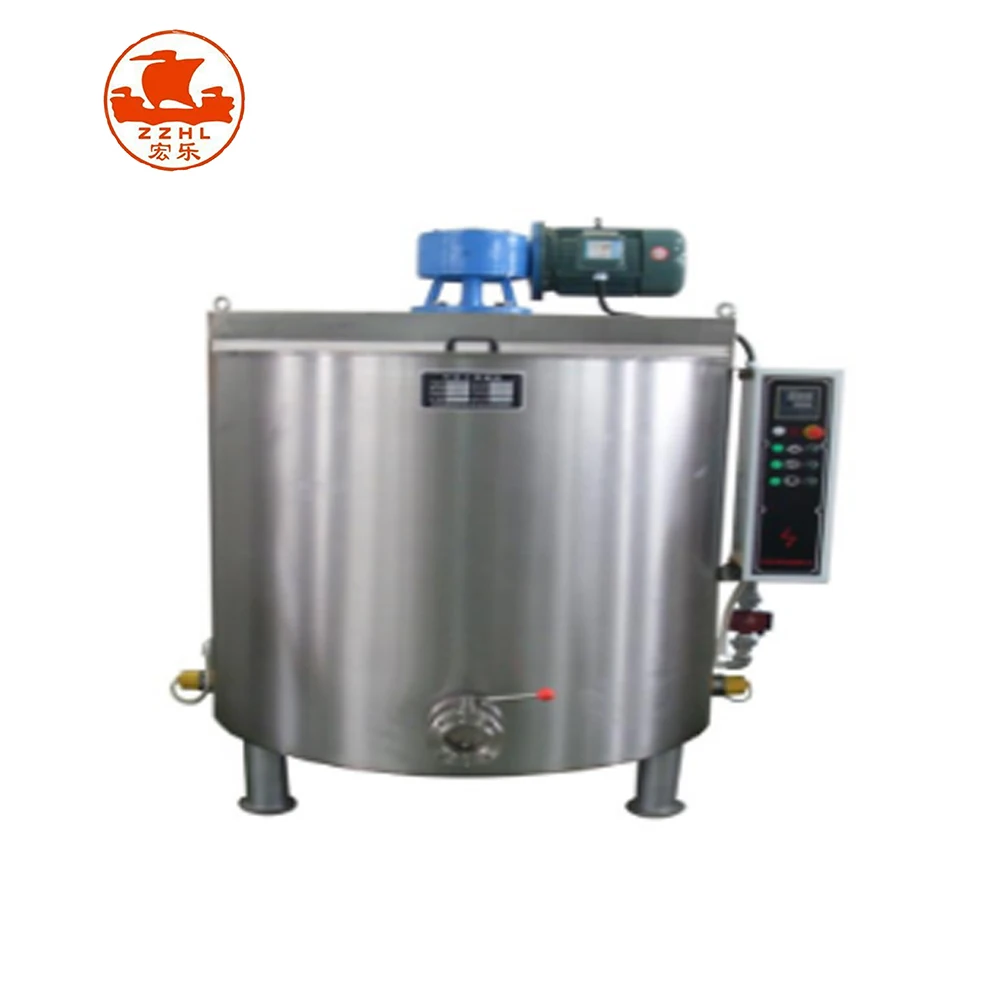

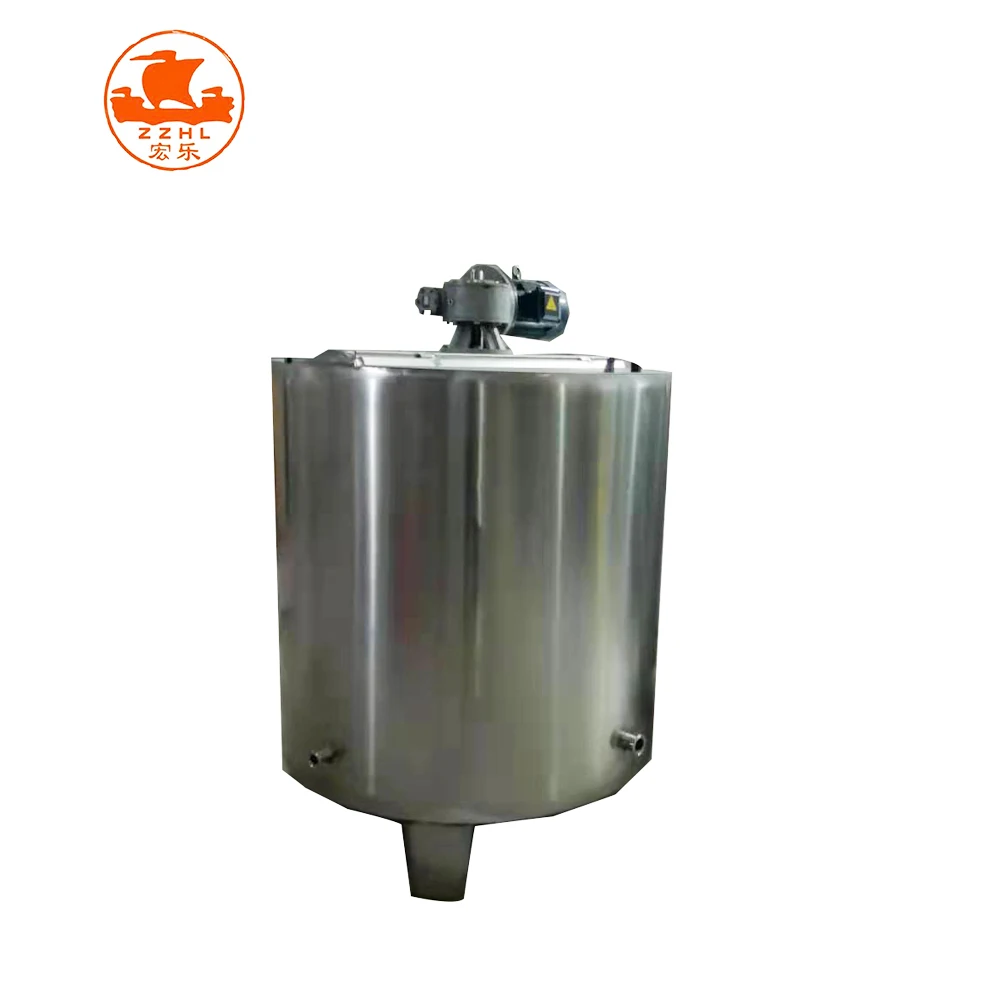

BWG1500 Chocolate Conche and Refiner
|
BWG500 Chocolate Conche and Refiner
|
|
|
Capacity
|
1500KG |
500L |
Stirring Speed |
23.5rpm |
23.5rpm |
Main Power |
3kw |
1.5KW |
Heating Power |
9KW(Electric heating and automatic temperature control)
|
4KW |
Material |
SUS304 cylinder block(inside and outside),stirring system,motor frame,motor frame,motor cover and outlet insulation butterfly valve,out bottom board use iron board;Grundfos hot water circulating pump;Siemens electrical components and Chinese domestic brand motor/reducer.Omron temperature controller. |
SUS304 cylinder block(inside and outside),stirring system,motor frame,motor frame,motor cover and outlet insulation butterfly valve,out bottom board use iron board;Grundfos hot water circulating pump;Siemens electrical components and Chinese domestic brand motor/reducer.Omron temperature controller. |
Zhengzhou hongle Machinery Equipment Co., Ltd has been designing, developing, manufacturing and marketing Machinery for more than 12 years.After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect aftersales service system. So choose us, equaling to choose the competitive price and stable quality both.
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2) How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
3) Can you guarantee your quality?
Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
4) How long does the whole procedure being worked out?
After you place a order,the production handling time is about 30-45 days. We need 7 days to prepare all the stuff then 30 days for manufacturing.
5) What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
