Product Application
All the equipment have flow operation, high automation degree, large output, and have low one-time investment, low energy consumption,cover an area of an area small, convenient usage and maintenance, finished goods quality, high profit, etc.The whole production line respectively by cleaning peeling, slicing (article), washing, blanching, rinse, dehydration, frying, deoiling, flavor,packaging, etc.Using large YangPai equipment, can provide free formulation and technical guidance, to make sure that you fry out high quality chips of chips.If need frozen line, plus a quick-freezing machine.
The entire assembly line consists of cleaning, peeling, slicing (striping), washing, blanching, rinsing, dehydration, frying,deoiling, seasoning, packaging and other processes.
1.1 Purpose

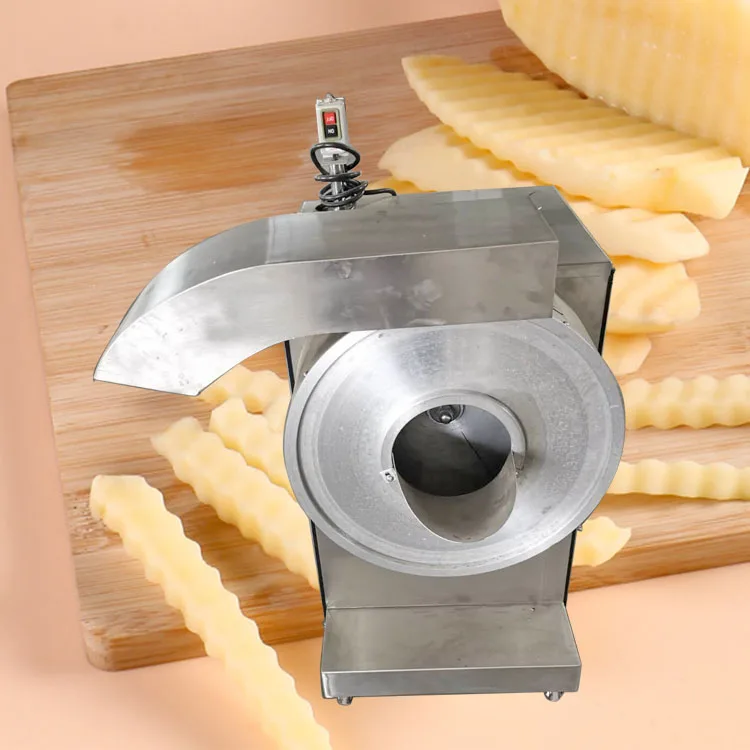

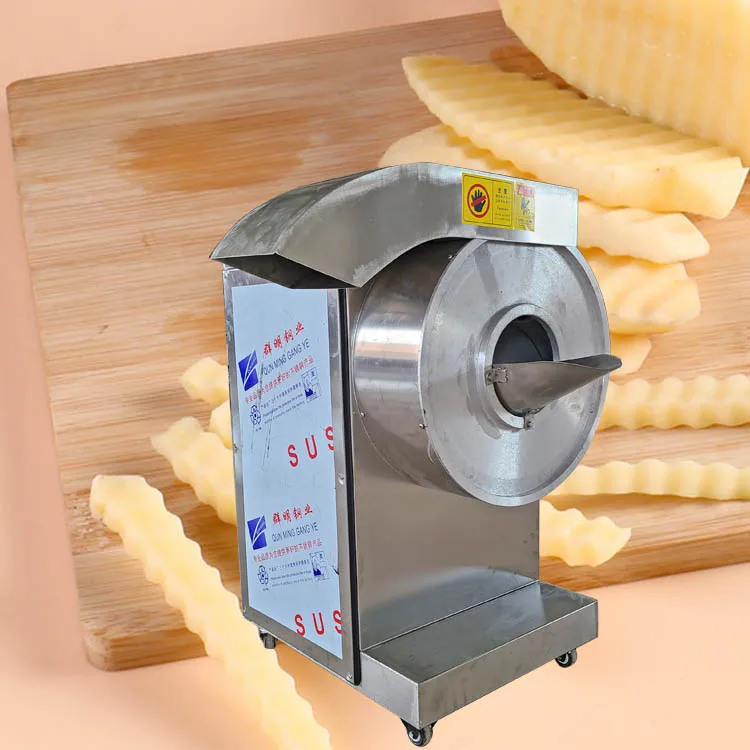

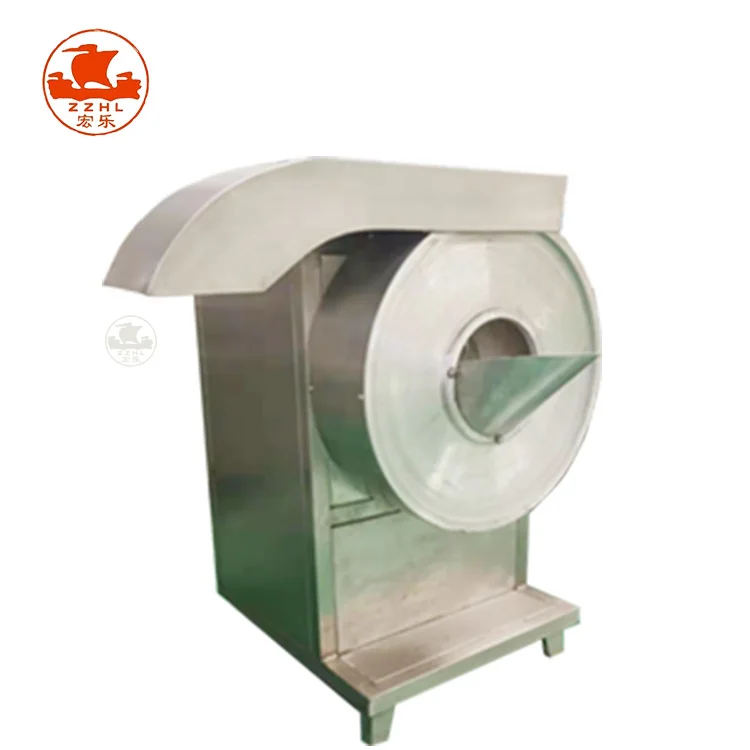

This machine is suitable for slicing or slicing hard potato dishes. It is an ideal processing equipment for the production of fresh vegetables and dehydrated vegetables in the vegetable processing industry. It is also an ideal machine for processing french fries in the fast food industry.
1.2 Features
The machine adopts the material guide groove on the rotary dial to feed; the obliquely distributed small knives and curved oblique blades are used for cutting. It has the characteristics of good cutting quality, high vegetable cutting efficiency, convenient operation and low energy consumption. All parts in contact with vegetables are made of aluminum alloy and stainless steel, which meets the requirements of food processing machinery hygiene standards.
2.1 Main structure
It mainly consists of frame, shell, dial, cutting knife, transmission part, discharge cover, etc.
2.2 Working principle
When working, the potato material is put into the hopper, and the material is rotated by the inverted trough on the rotating dial to rotate the material along the wall of the housing. The cutter installed on the wall of the housing cuts the vegetables into strips. The hood comes out.
3 Technical parameters
a) Production capacity: 1000kg/h (calculated according to 10mm)
b) Cutting specifications: 5mm.8mm.10mm. (Each machine is configured according to one specification, if users need, they can buy other specifications of knives, gaskets, dials)
Model |
HL-QTJ-1000 |
Rotation speed |
178r/min |
Motor power |
1.1kw-4 or 0.75kw-4 |
Rated voltage |
220v~ or 380v~ 3~ 50Hz |
Waterproof rating |
IPX1 |
Dimensions |
780*700*1000mm |
Machine weight: |
120kg |
