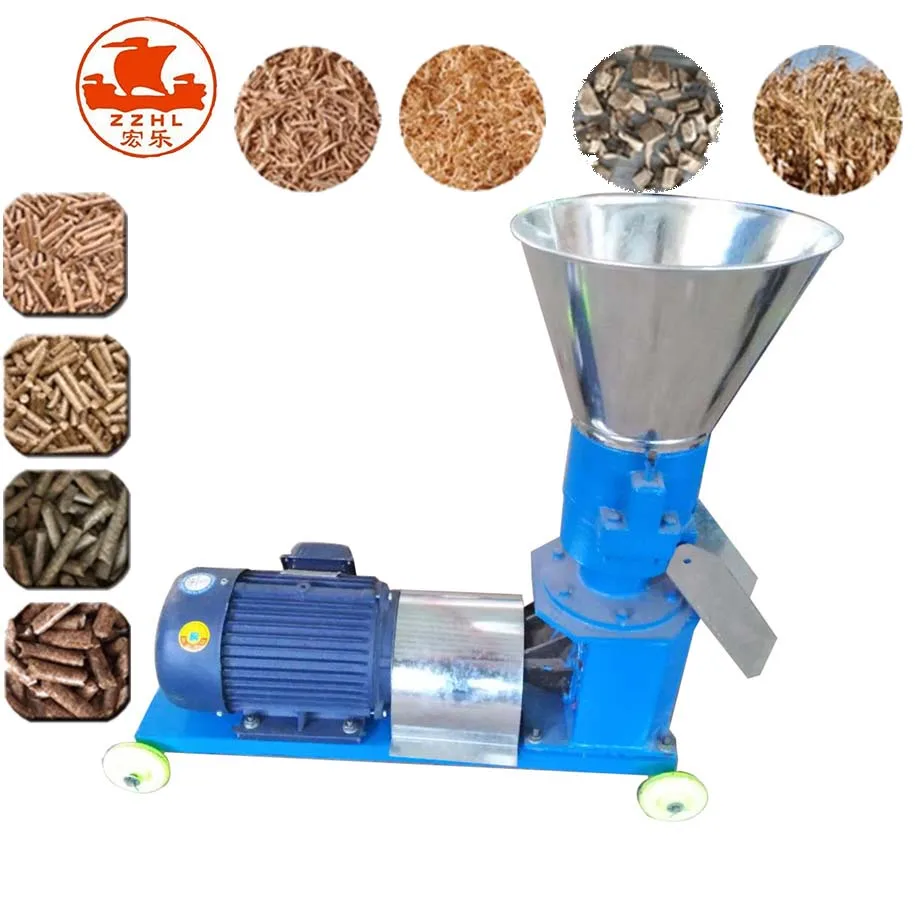

Cattle feed manufacturing machines pallet feed processing machinery
Product Description
Introduction :
Wide adaptability, small footprint and low noise. Powdered feed and grass powder can be granulated without liquid addition. Therefore, the moisture content of the pellet feed is basically the moisture content of the material before granulation. More conducive to storage. The granules made by the flat die granulator have high hardness, smooth surface, and sufficient internal maturity, which can improve the digestion and absorption of nutrients, and can kill general disease-controlling microorganisms and parasites. It is suitable for feeding rabbits, fish, ducks, pigeons, and experiments Animals can obtain higher economic benefits than mixed powdered feed.
Feed pellet machine is to use an electric motor or diesel engine as power drive shaft, on the basis of cyclic operation. It through main gear drive shaft and the mould plate and friction roller, and the resulting friction temperature can reach 80 degrees Celsius. Sawdust by high temperature, under the action of roller, they through the holes in the mold, the quality of forming particles to scroll from discharging mouth out. At the same time, the length of the particles can be set according to adjust the position of the cutting head to you.
1. Wide range of raw materials, such as wood chips, leaves, straw and other biomass.
2. Stable performance, high output and low energy consumption.
3. Equipped with heavy-duty bearing, long life.
4. High wear-resistant heat treatment is performed on the flat die and the pressure roller, and the cost of high wear-resistant parts will be relatively low.
5. High particle forming rate and high particle strength.
6. Convenient maintenance and maintenance, low failure rate, easy body casting, solid structure.
7. The machine can be customized motor, diesel engine, gasoline engine.
Parameters:
Model |
output |
Motor |
WEIGHT(kg) |
SIZE(cm) |
HlKL-125 |
80-100 kg/h |
3kw |
150 |
68*27*78 |
HlKL-150 |
90-150kg/h |
3kw |
200 |
70*27*78 |
HlKL-200 |
200-300kg/h |
7.5kw |
250 |
90* 35 * 91 |
HlKL-230 |
350-450kg/h |
11kw |
350 |
102* 38* 94 |
HlKL-260 |
500-600kg/h |
15kw |
450 |
108 * 42* 108 |
Hlkl-300 |
600-800kg/h |
22kw |
55o |
130 * 55 * 125 |
HIKL-360 |
700-900kg/h |
22kw |
600 |
140*60*165 |
Hlkl-400 |
900-1200kg/h |
30kw |
750 |
150 * 61 * 185 |

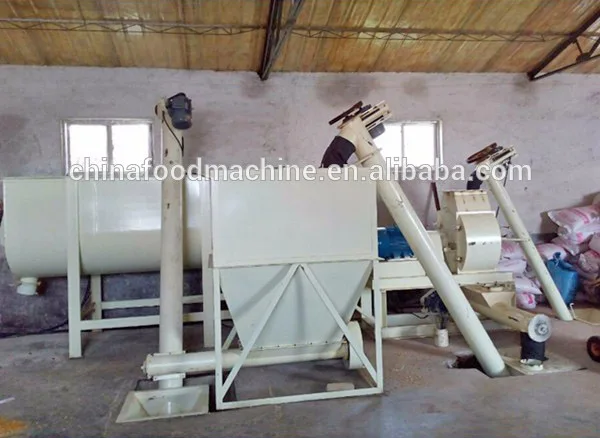

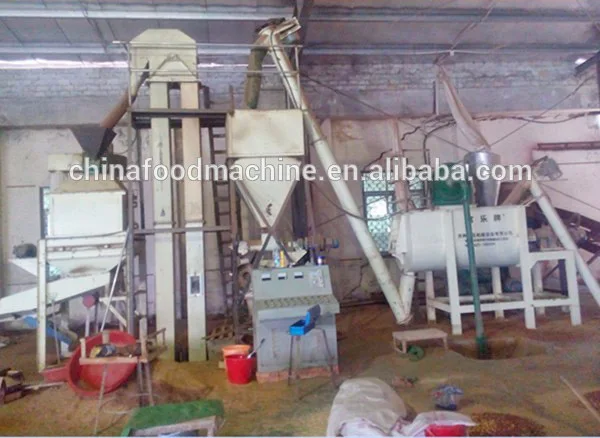

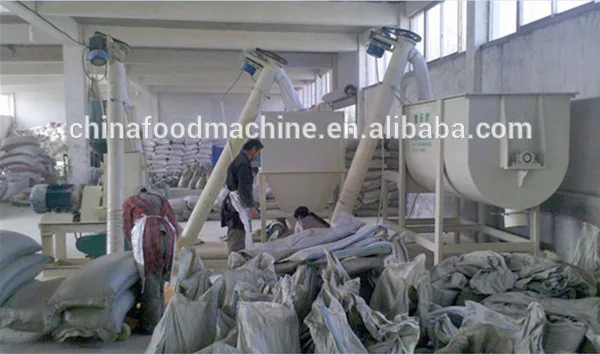

Animal feed processing equipment
Production line which is applicable to produce animal feed in different size for kinds of animals,high efficiency,automaticlly
Instructions:
Granule feedstuff machine with mechanical circular motion as a foundation, motor as motivation in the friction, under the action of pressure rod rotation, pressure stick with granular, powder materials produced by high temperature pasting in pressure under the extrusion of rod from model hole team-record exit, via materials plate made of particles will send out the shaped feed layer,particles size can be adjusted.
Machinable animal feedstuff for pig, ox, sheep, chicken, fish, goose,ducks, as well as livestock particles.
Main components:
feed processing machine,spiral hoist,cooler,material level editor,etc
Components functions:
1. The spiral hoist is a machine to lift the granule feedstuff produced by granulating machine to the counter-current type cooling machine through the rotating heave dragon device of the spiral promotion where the granule feedstuff will be cooled.
2. secondly, the Counter-current type cooler scatters granule feedstuffs lifted by the screw conveyor sprinkling down into cooling box through closed wind implement and rhombus scatter machine, then by dust cyclone fan put granulating machine production comes
out temperatures as high as 70-90 degrees, moisture 14% -16% of granule feedstuff, cooled to slightly higher than room temperature, moisture below under national required safety moisture. After cooling, it increases the hardness of granule feedstuffs and can prevent mildew, which facilitates granule feedstuff transportation and storage.
3. Granule feedstuffs cooling time in the cooler, is voluntary controlled by the two material level editor of the cooler, when the granule feedstuff accumulates to upper material level device of the cooler ,material discharging system began to work, and discharging system automatically shut off when the granule feedstuff down onto the lower material level device, such circulation
work, the cooling of the granule feedstuff through cooler, then grading sieve below the cooler sends the debris materials which does not conform to requirements and below the filter ,back to be granulated again, making full use of the materials.
Instructions:
Granule feedstuff machine with mechanical circular motion as a foundation, motor as motivation in the friction, under the action of pressure rod rotation, pressure stick with granular, powder materials produced by high temperature pasting in pressure under the extrusion of rod from model hole team-record exit, via materials plate made of particles will send out the shaped feed layer,particles size can be adjusted.
Machinable animal feedstuff for pig, ox, sheep, chicken, fish, goose,ducks, as well as livestock particles.
Main components:
feed processing machine,spiral hoist,cooler,material level editor,etc
Components functions:
1. The spiral hoist is a machine to lift the granule feedstuff produced by granulating machine to the counter-current type cooling machine through the rotating heave dragon device of the spiral promotion where the granule feedstuff will be cooled.
2. secondly, the Counter-current type cooler scatters granule feedstuffs lifted by the screw conveyor sprinkling down into cooling box through closed wind implement and rhombus scatter machine, then by dust cyclone fan put granulating machine production comes
out temperatures as high as 70-90 degrees, moisture 14% -16% of granule feedstuff, cooled to slightly higher than room temperature, moisture below under national required safety moisture. After cooling, it increases the hardness of granule feedstuffs and can prevent mildew, which facilitates granule feedstuff transportation and storage.
3. Granule feedstuffs cooling time in the cooler, is voluntary controlled by the two material level editor of the cooler, when the granule feedstuff accumulates to upper material level device of the cooler ,material discharging system began to work, and discharging system automatically shut off when the granule feedstuff down onto the lower material level device, such circulation
work, the cooling of the granule feedstuff through cooler, then grading sieve below the cooler sends the debris materials which does not conform to requirements and below the filter ,back to be granulated again, making full use of the materials.
